RAK Wireless WisGate Developer D0+

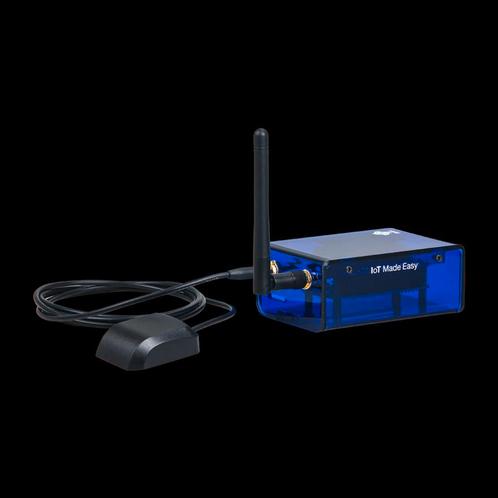

WisGate Developer D0+ is a LoRaWAN® developer gateway with a GPS function. It is composed of the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, allowing simultaneous reception over 8 LoRa channels.
WisGate Developer D0+ is an ideal choice for prototype design, concept verification and demonstrations, development evaluation, and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.

Key Features

• Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN Gateway;
• Built-in Ublox MAX-7Q GPS module;
• The Pre-installed radiator guarantees stable thermal performance
• Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
• Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
• Power supply 5V / 2.5A (power adapter sold separately).

• 1x WisGate Developer D0+ (RAK2246 and Raspberry Pi Zero W inside)
• 1x LoRa Antenna
• 1x GPS Antenna
• 1x 16GB TF Card with pre-installed firmware
• 1x USB Cable
