CCR1036-12G-4S-EM routerboard van mikrotik

RouterBoard ::

CCR1036 - uitgerust met 36 cores (1,2 GHz) en 8 GB RAM, een uiterst efficiënte LAN-router gebaseerd op het MikroTik-platform.

Prestaties: 24.000.000 pps (fastpath) maximale doorvoer tot 16 Gbit/s.

19" 1U rackbehuizing, netwerkinterfaces: 12x GigE + 4x SFP.

Eventueel kan ik deze ook voor jou configureren.


CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

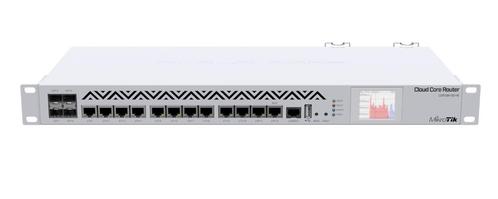

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Send purchase questions

• Specifications
• Support & Downloads
• Gallery
• Test results

SpecificationsDetailsProduct codeCCR1036-12G-4SArchitectureTILECPUTLR4-03680CPU core count36CPU nominal frequency1.2 GHzDimensions443 x 193 x 44 mmRouterOS license6Operating SystemRouterOSSize of RAM4 GBStorage size1 GBStorage typeNANDMTBFApproximately 200'000 hours at 25CTested ambient temperature-20°C to 60°CIPsec hardware accelerationYesSuggested price$1095.00PoweringDetailsNumber of AC inputs2AC input range100-240Max power consumption60 WCooling type2 fansEthernetDetails10/100/1000 Ethernet ports12FiberDetailsSFP DDMIYesSFP ports4PeripheralsDetailsSerial console portRJ45Number of USB ports1USB Power ResetYesUSB slot typeUSB type AMax USB current (A)1Number of M.2 slots1OtherDetailsCPU temperature monitorYesPCB temperature monitorYesVoltage MonitorYesMode buttonYesBeeperYesCertification & ApprovalsDetailsCertificationCE, EAC, ROHSIPIP20
