G3TXQ Hexbeam Tilt Plate

Selling my amazing G3TXQ tilt plate.

Fed up of fighting with your antenna when installing on the mast or tower or for that yearly maintenence?

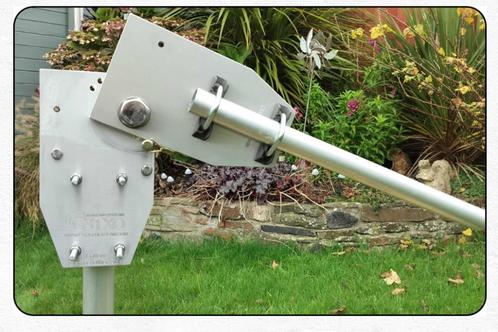

The Hexbeam tilt is a simple but effective tool to ease the process of lowering the Hexbeam to a safe position to work on or to mount to the tower or mast.
Made from 12 mm thick aluminium plates the pivot point is a M24 stainless bolt and Nylock nut, simple but effective.

Each plate is 12mm in thickness and 150mm x 270mm machined to the shape you see in the image above.
The max sized tube the clamps can take is 2" or 50mm OD
U bolts are M8 BZP, all other hardware is stainless steel, the saddle clamps are 3mm thick Sherardized Steel.



Hexbeam Tilt will also work for other antennas such as:

Hexbeam antennas
Cobweb antennas
Cubical Quad antennas
Moxen Antennas
Yagi Antennas
and many more
