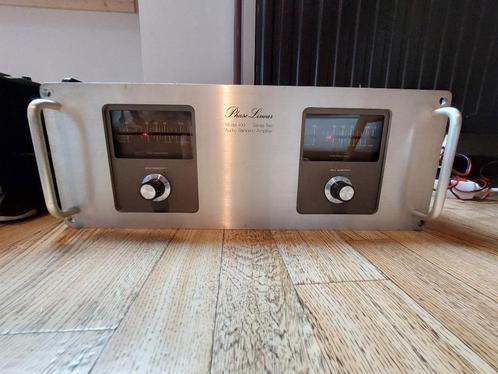

Phase Linear Model 400 serie 2

Phase Linear Model 400 serie 2

Vintage versterker in goede staat , heeft gebruiksporen maar is technisch volledig in orde .
Dit model versterker werd eind jaren 70 - begin jaren 80 gebruikt op concerten van Pink Floyd en andere bands .

Zeer goede geluidskwaliteit en vermogen voor een versterker van deze leeftijd .

• Power Output 210 watts minimum power per channel, RMS into 8 ohms from 20 Hz to 20,000 Hz with no more that .09% Total Harmonic Distortion
• Continuous Power 260 watts per channel 8 ohms at 1000 Hz /360 watts per 4 ohms
• Typical Total Harmonic Distortion.009% at rated power into 8 ohms at 1 kHz 009% at rated power into 4 ohms at 1 kHz
• Intermodualtion Distortion: (60 Hz: 7 kHz = 4:1)less than .09% at rated power into 8 ohms
• Frequency Response12 Hz to 40 kHz +0-1 Db Signal-to-Noise Ratio110 dB (IHF Weighted)
• Residual Noise120 uV (IHF A-Weighted)
• Damping Factor1000:1 @ 1000 Hz
• Input Impedance33 k ohms minimum
• Input Sensitivity1.0 volts RMS for 210 watts at 8 ohms
• Speaker Impedance accepts 4 ohms to 16 ohms
• Slew Rate Better than 18V/uS
• Rise Time(Small Signal) Less than 4.0 Us
• Phase Shift0 degrees at 20 Hz -18 degrees at 20 kHz
• Power Consumption 1,200 watts (10 amps) maximum at rated output
