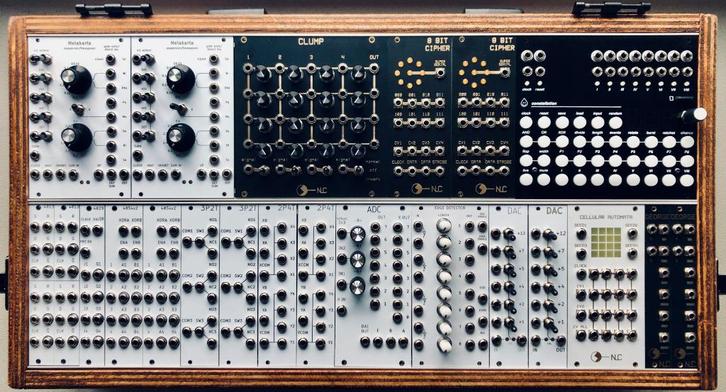

DIY modules (except Constellation).

All hand-built by me from pcb & panel, own parts sourcing using only genuine IC’s & high quality parts. All modules come with screws, generic box and ribbon.

DM for more info and/or pics. NO TRADE OFFERS please.

If you're looking for other, non-listed NLC (or any other DIY brand) modules, let me know: I'm a certified NLC builder.

BEERS

2P4T 4-throw binary addressed bidirectional switch 130€
3P2T bidirectional analog switch 130€
4013 dual flip flop 100€
4029 presettable up/down counter 115€
4054x2 dual 4-channel data latch 115€
ADC analogue to digital converter, multiplexor, bar graph 150€
DAC transposer/gate driven sequencer 150€
Edge Detector 8-channel gate-to-trigger with OR-combined outputs 150€
Melakarta Up/down clockable, binary-addressable carnatic transposer/sequencer 175€

NON LINEAR CIRCUITS

1050 MixSeq Arp2600 inspired sequencer, mixer, sequential switch, rectifier 170€
8 Bit Cipher random gate & stepped voltage source 150€
Cellular Automata 16 cell gate & stepped voltage pattern generator 200€
Clump 4x4 cv controllable matrix mixer 240€
Frisson natural complex chaos based on Mackey-Glass equations 160€
Frolic 8 stage clocked or cv addressable sequencer / sequential switch / multiplexer 235€
GENiE generalized nonlinear extrapolator (Neuron network & mixer) 150€
George 2 in 6 out boolean logic 100€
Goo Goo Mux binary adressed 8-1 1-8 mux/demux 100€
Molecular Relaxation Simulator complex voltage controlled slew and envelope generator 150€
Numberwang gate & trigger generator 140€
Product wavefolder / waveshaper / vca / fuzz 140€
Pseudo pseudo random pattern & noise/tone generator 160€
Squid Axon chaotic analogue shift register with linear & non-linear feedback SOLD

LOW GAIN ELECTRONICS

Dubmatrix 5x5 matrix mixer with input gain and mute switches 275€

SKULL & CIRCUITS

VCF-1 voltage controlled vactrol low pass filter 65€

ACID RAIN TECHNOLOGY

Constellation 8-channel complex euclidean trigger & gate sequencer 350€ (factory build)
