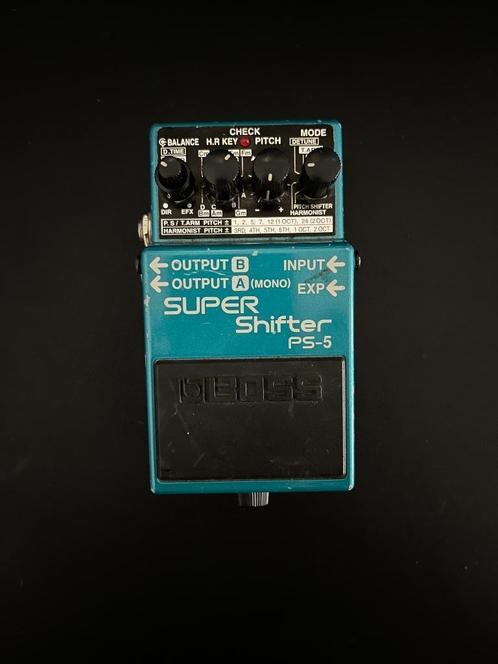

Boss PS-5

Combines intelligent pitch shifting (+/-2 octaves) and harmonist functions with new Tremolo Arm/Flutter effects. Tremolo Arm bends notes to a pre-selected value while Flutter simulates the slapping of a tremolo bar.

Features/Specifications:

• Compact pedal with high-quality pitch shifting, Harmonist and tremolo arm effects
• Intelligent, key-specific pitch shifting of single notes using simple Pitch and Key knobs with scale display
• Key Shift outputs continuous shifted tone for playing in different keys
• Detune effect provides slight shifting for "fattening" a guitar sound
• Tremolo Arm effect bends single notes up or down to a pre-selected value when pedal is activated; optional expression pedal can be connected for realtime control
• Flutter effect simulates fast or slow "slap" or "slam" of tremolo bar when pedal is depressed

Further Specs:

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Dynamic Range: 115 dBu or greater (Direct), 98 dBu or greater (Effect)
• Connectors: INPUT Jack, OUTPUT Jack A (mono)/ B, EXP Jack, AC Adaptor Jack (9 V DC)
• Power Supply: 9 V DC: Dry Battery 9 V type (6F22/9 V), AC Adaptor
• Current Draw: 50 mA (max.)
• Accessories: Dry Battery 9 V type (6F22/9 V)
• Size and Weight ( incl. battery ): (W) 73 mm, 2-7/8 inches (D) 129 mm, 5-1/8 inches (H) 59 mm, 2-3/8 inches (Wt) 0.4 kg, 0 lbs. 15 oz.
