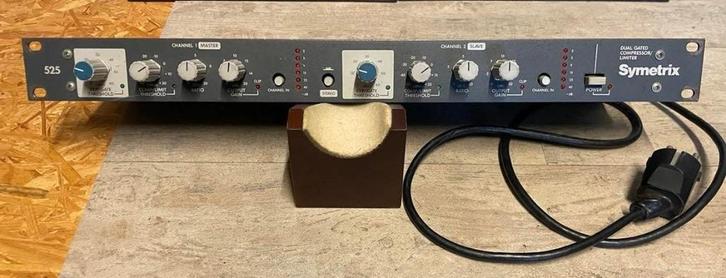

Symetrix 525 USA: Dual Compressor/Limiter/Gate
The Symetrix 525 is a stereo / dual-channel VCA compressor / Limiter / Gate in a neat 1U package. Each channel has a dedicated Control Loop with a Send / Return jack, allowing external control of dynamics. The Return jack can be used as a key input for ducking, pumping & etc, or the loop can be used to eq the sidechain.

Each channel has controls for Expander/Gate Threshold, Compressor/Limiter Threshold, Ratio and Output Gain plus an in/out pushbutton. There’s a separate Stereo switch to link the two channels for stereo tracking. Gain Reduction is shown via an LED meter
Specifications

• Input: 1/4" jack (TRS)
• Output: 1/4" jack (TRS)
• Frequency Response: 20Hz - 20kHz
• Input Impedance: 46.3k Ohms Balanced, 23.1k Ohms Unbalanced
• Output Impedance: 100 Ohms
• Dynamic Range: Greater than 100dB
• Comp Ratio: Variable 1:1 20:1

Symetrix 525 USA: 235€ (Nieuwprijs was 500€)
