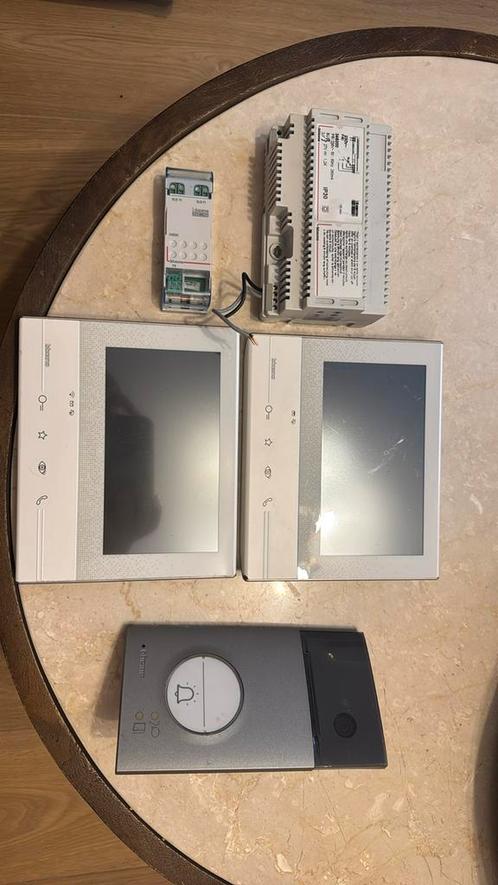

Bticino deurbel inclusief voeding en intercom (x2)

1x Linea 3000 wall mounted 2-Wires entrance panel with Zamak front cover. Can be set up for one or two family installation. It provides the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current, 30 ohm max). White LED backlit name plate. Protection degree IP54 – protection against mechanical impact IK10.

2x Classe 300X - Connected 2 Wires handsfree video IU with 7”Touch display – light Connected 2 wire / Wi-Fi handsfree video internal unit with inductive loop, 7" Touch Screen LCD display and video door entry answering – light finish. It has capacitive keys for the control of the main video door entry functions: door lock release, handsfree connection, entrance panel activation /camera scrolling and favorite key (can be configured to activate the quick actions most frequently used - eg: staircase lights control, Intercom, additional activations). Tactile guide for easy access to door lock and handsfree capacitive connection keys. LEDs used for: call exclusion, notification of messages from switchboard and note. Access to adjustments and functions using the touch display. NOTE function - for writing using the keypad, or for voice recording of messages and/or notes for the other residents of the apartment (e.g.: call plumber, do the shopping, etc.). Possibility of voice communication with the switchboard - if present in the system - after a specific call. Device must be configured by physically connecting the configurators, or using the menu, which will give better possibilities of customisation of associated functions and texts.
Also, thanks to the Wi-Fi connection, you can associate the video internal unit to the Door Entry App (available for Android and iOS). You can manage the main video internal unit functions (receiving calls, opening the door lock, manage the answering machine, activating the entrance panel/cycling and extra activations). Open at integration with connected third-party devices (e.g. NETATMO Smart Indoor and Smart Outdoor Cameras).

1x Video adapter with 2 DIN modular housing. For connecting 3 BUS to the system. It is therefore possible to install systems with 2 video entrance panels and 1 riser, as well as systems with one video entrance panel and 2 risers.

1x Power supply for 2 WIRE audio and video systems in 8 DIN modular enclosure. Power supply 230 Vac at 50-60 Hz. The output provides 27 Vdc continuous low voltage, with maximum current of 1.2 A. It is electronically protected (without fuse) against overload and short circuit. It is a SELV double insulation safety device.
