Kenmerken
Conditie
Nieuw
Beschrijving
Brooks Instrument 1350/D2A4D1A6E020 (10-30 ln/h) Debietmeter Sourced from working

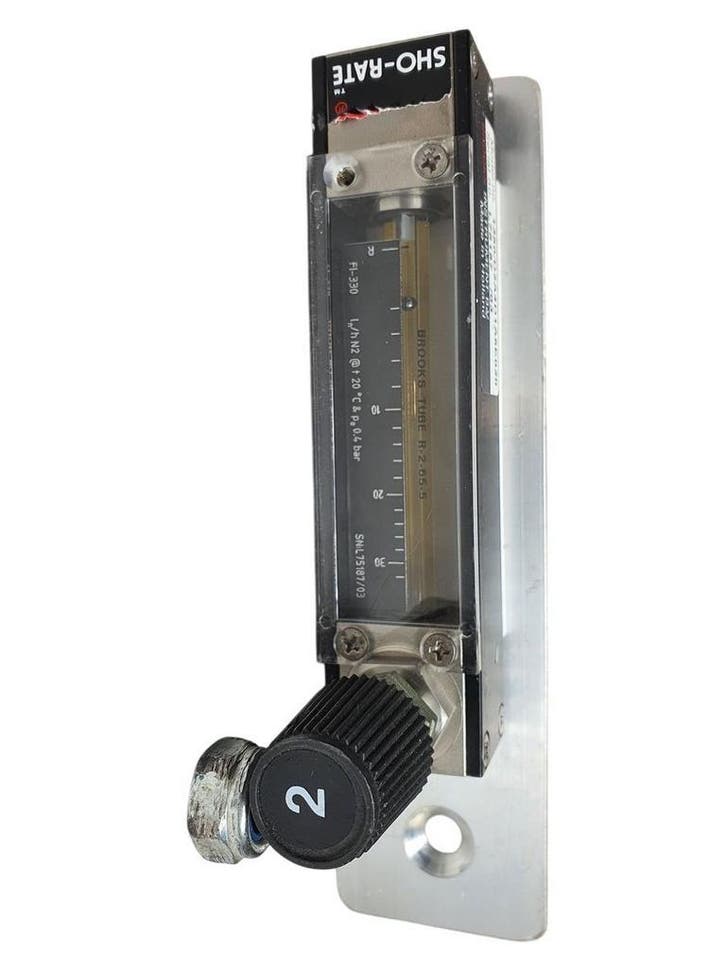

Brooks Sho-RateT 1350 Flowmeter
Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands
Model: 1350/D2A4D1A6E020
Serial No.: L75187
Product Type: Variable Area Flowmeter (Rotameter)
Parameter Specification Measurement principle Float position (variable area) Indication Direct visual reading via float position Measured medium Nitrogen (N?) Flow range 10-30 Fl-330 ln/h N? Accuracy Typically ±5% of full scale Repeatability Excellent repeatability for stable measurement Calibration temperature 20 °C Inlet pressure (Pe) 0.4 bar Operating temperature 20 °C (calibration condition) Metering tube material Borosilicate glass Float material As defined by D1 configuration Installation orientation Vertical Process connections 1/8" or 1/4" NPT (model-dependent) Mounting Panel mounting, optional rear or side connections Country of manufacture Netherlands Compliance PED SEP (Sound Engineering Practice)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Brooks Sho-RateT 1350 Flowmeter
Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands
Model: 1350/D2A4D1A6E020
Serial No.: L75187
Product Type: Variable Area Flowmeter (Rotameter)
Parameter Specification Measurement principle Float position (variable area) Indication Direct visual reading via float position Measured medium Nitrogen (N?) Flow range 10-30 Fl-330 ln/h N? Accuracy Typically ±5% of full scale Repeatability Excellent repeatability for stable measurement Calibration temperature 20 °C Inlet pressure (Pe) 0.4 bar Operating temperature 20 °C (calibration condition) Metering tube material Borosilicate glass Float material As defined by D1 configuration Installation orientation Vertical Process connections 1/8" or 1/4" NPT (model-dependent) Mounting Panel mounting, optional rear or side connections Country of manufacture Netherlands Compliance PED SEP (Sound Engineering Practice)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
