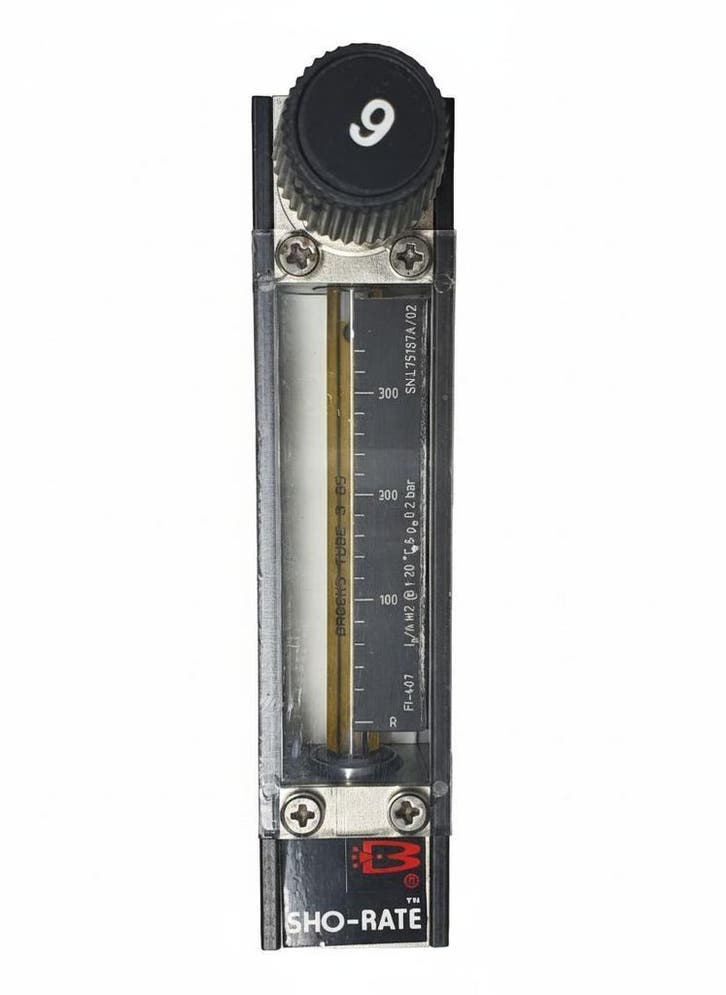

Brooks Instrument 1350/D2F3D1A6J020 (100-300 ln/h) Debietmeter Gebruikt
Brooks Sho-RateT 1350 Flowmeter - Specification Table (This Model)
Manufacturer: Brooks Instrument
Product Family: Sho-RateT 1350
Product Type: Variable Area Flowmeter (Rotameter)
Scale / Tube ID: FI-407
Serial No.: 75187A/02
Parameter Specification Measurement principle Variable area (float position) Indication Direct visual reading Measured medium Nitrogen (N?) Flow range 0-300 ln/h Flow unit ln/h (normal liters per hour) Flow reference conditions 20 °C, Pe = 0.2 bar Scale marking l?/h N? @ t 20 °C & Pe 0.2 bar Secondary scale 0-40 (dimensionless float position reference) Accuracy Typically ±5% of full scale Repeatability Excellent Metering tube material Borosilicate glass Float material As defined by Brooks FI-407 calibration Installation orientation Vertical only Reading reference Top of float Process connections Not visible (model-dependent, typically NPT) Mounting Panel mounting Pressure indication None Maximum working pressure (MWP) Not indicated on visible scale Country of manufacture Netherlands (Brooks Instrument B.V.) Compliance PED SEP (typical for Sho-Rate 1350 series)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Brooks Sho-RateT 1350 Flowmeter - Specification Table (This Model)
Manufacturer: Brooks Instrument
Product Family: Sho-RateT 1350
Product Type: Variable Area Flowmeter (Rotameter)
Scale / Tube ID: FI-407
Serial No.: 75187A/02
Parameter Specification Measurement principle Variable area (float position) Indication Direct visual reading Measured medium Nitrogen (N?) Flow range 0-300 ln/h Flow unit ln/h (normal liters per hour) Flow reference conditions 20 °C, Pe = 0.2 bar Scale marking l?/h N? @ t 20 °C & Pe 0.2 bar Secondary scale 0-40 (dimensionless float position reference) Accuracy Typically ±5% of full scale Repeatability Excellent Metering tube material Borosilicate glass Float material As defined by Brooks FI-407 calibration Installation orientation Vertical only Reading reference Top of float Process connections Not visible (model-dependent, typically NPT) Mounting Panel mounting Pressure indication None Maximum working pressure (MWP) Not indicated on visible scale Country of manufacture Netherlands (Brooks Instrument B.V.) Compliance PED SEP (typical for Sho-Rate 1350 series)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
