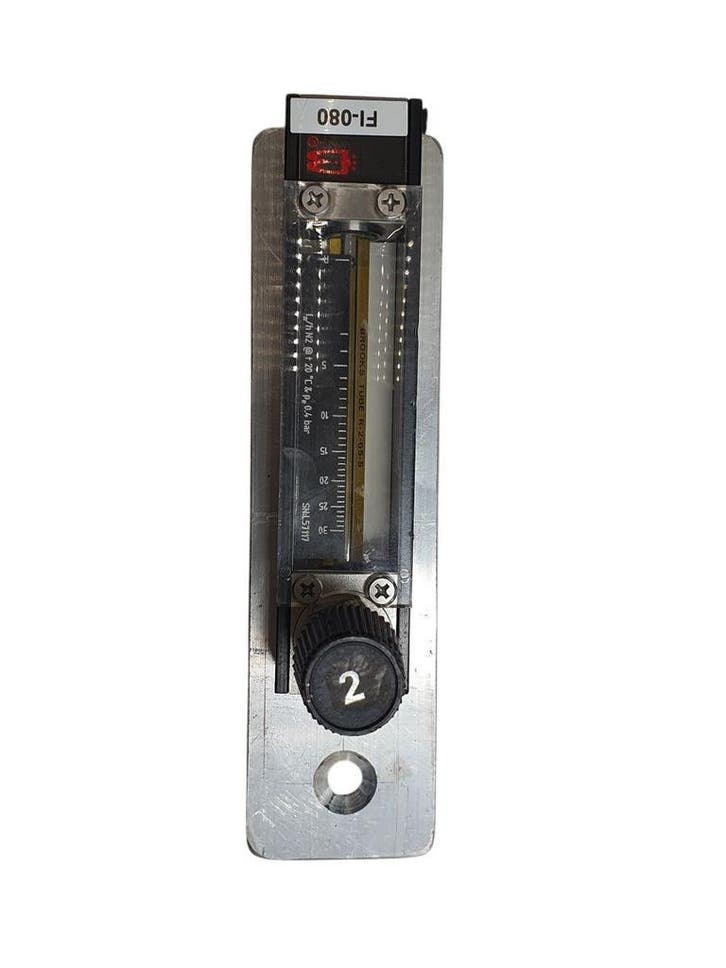

Brooks Instrument 1350/D2A4D1A6E020 (5-30 ln/h) Debietmeter Sourced from working
Brooks Sho-RateT 1350 Flowmeter
Manufacturer: Brooks Instrument B.V. (Netherlands)
Model: 1350/D2A4D1A6E020
Serial No.: L57117
Parameter Specification Flowmeter Type Variable area flowmeter (rotameter) with glass metering tube Measurement Principle Mechanical, based on float position Indication Direct visual indication via float position Measured Medium Nitrogen (N?) Flow Range Fl-080 / 5-30 ln/h N? Calibration Temperature 20 °C Accuracy ±5% of full scale Repeatability ±0.5% of full scale Operating Temperature Range 1 °C to 121 °C Calibration Conditions 20 °C, nitrogen Inlet Pressure (Pe) 0.4 bar Metering Tube Material Borosilicate glass Float Material Stainless steel or glass (per tube/float configuration) Body / Frame Material Aluminum End Fittings Stainless steel or plated brass (model dependent) Seals / O-rings Buna-N or Viton® Installation Orientation Vertical mounting Connections 1/8" or 1/4" NPT (depending on configuration) Mounting Panel mounted, rear or side connection options Compliance PED SEP (Sound Engineering Practice) Country of Manufacture Netherlands
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Brooks Sho-RateT 1350 Flowmeter
Manufacturer: Brooks Instrument B.V. (Netherlands)
Model: 1350/D2A4D1A6E020
Serial No.: L57117
Parameter Specification Flowmeter Type Variable area flowmeter (rotameter) with glass metering tube Measurement Principle Mechanical, based on float position Indication Direct visual indication via float position Measured Medium Nitrogen (N?) Flow Range Fl-080 / 5-30 ln/h N? Calibration Temperature 20 °C Accuracy ±5% of full scale Repeatability ±0.5% of full scale Operating Temperature Range 1 °C to 121 °C Calibration Conditions 20 °C, nitrogen Inlet Pressure (Pe) 0.4 bar Metering Tube Material Borosilicate glass Float Material Stainless steel or glass (per tube/float configuration) Body / Frame Material Aluminum End Fittings Stainless steel or plated brass (model dependent) Seals / O-rings Buna-N or Viton® Installation Orientation Vertical mounting Connections 1/8" or 1/4" NPT (depending on configuration) Mounting Panel mounted, rear or side connection options Compliance PED SEP (Sound Engineering Practice) Country of Manufacture Netherlands
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
