Kenmerken
Conditie
Nieuw
Beschrijving

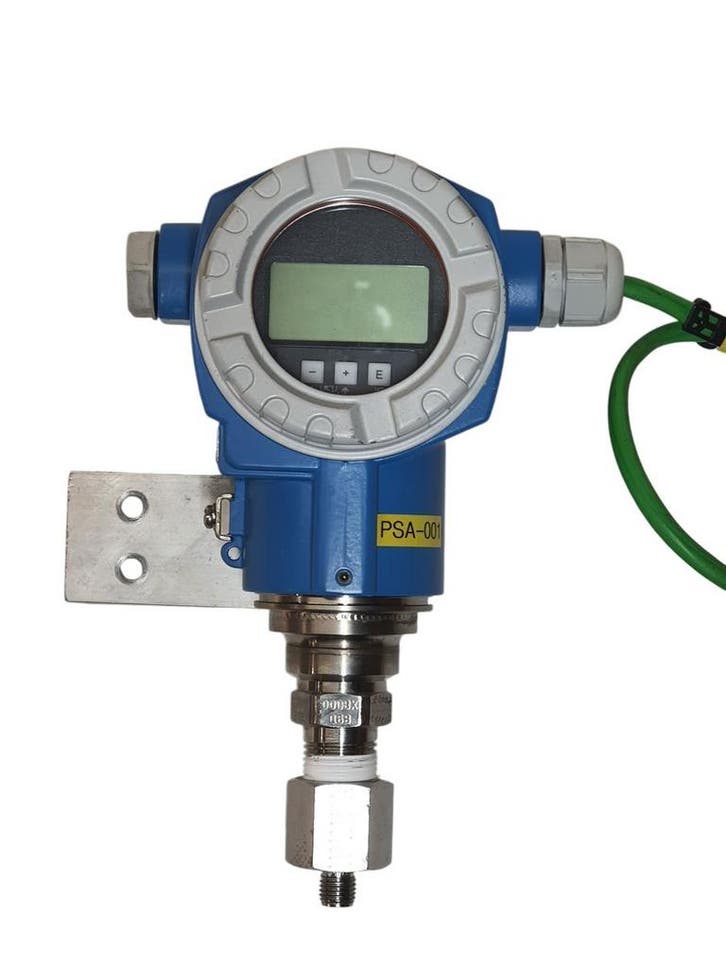

Endress+Hauser Cerabar S PMP71
Category Parameter Specification Pressure Measurement Pressure Type Gauge pressure Measuring Range (Sensor) -1 . 400 bar Configured Span 4 . 400 bar Lower Range Value (LRV) 4 bar (4 mA) Upper Range Value (URV) 400 bar (20 mA) Calibration / Adjustment Range 0 . 150 bar Process Connection Connection Type ½" NPT Material (Process-Wetted / Lower Part) 316L stainless steel Pressure Rating Suitable for applications up to 400 bar Output & Communication Output Signal 4-20 mA Communication Protocol HART Wiring 2-wire, loop-powered Supply Voltage 11.5 . 45 V DC Materials & Construction Sensor Material Stainless steel Wetted Parts Material 316L stainless steel (½" NPT1 / 1.4435 / 1.4404) Gauge Transmitter Material 1.4435 / 316L stainless steel, 1.4404 / 316L stainless steel Model & Ordering Model PMP71 (Cerabar S) Order Code PMP71-ABA1WB1RDAAA Display Local Display Integrated LCD
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Category Parameter Specification Pressure Measurement Pressure Type Gauge pressure Measuring Range (Sensor) -1 . 400 bar Configured Span 4 . 400 bar Lower Range Value (LRV) 4 bar (4 mA) Upper Range Value (URV) 400 bar (20 mA) Calibration / Adjustment Range 0 . 150 bar Process Connection Connection Type ½" NPT Material (Process-Wetted / Lower Part) 316L stainless steel Pressure Rating Suitable for applications up to 400 bar Output & Communication Output Signal 4-20 mA Communication Protocol HART Wiring 2-wire, loop-powered Supply Voltage 11.5 . 45 V DC Materials & Construction Sensor Material Stainless steel Wetted Parts Material 316L stainless steel (½" NPT1 / 1.4435 / 1.4404) Gauge Transmitter Material 1.4435 / 316L stainless steel, 1.4404 / 316L stainless steel Model & Ordering Model PMP71 (Cerabar S) Order Code PMP71-ABA1WB1RDAAA Display Local Display Integrated LCD
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
