Kenmerken
Conditie
Nieuw
Beschrijving

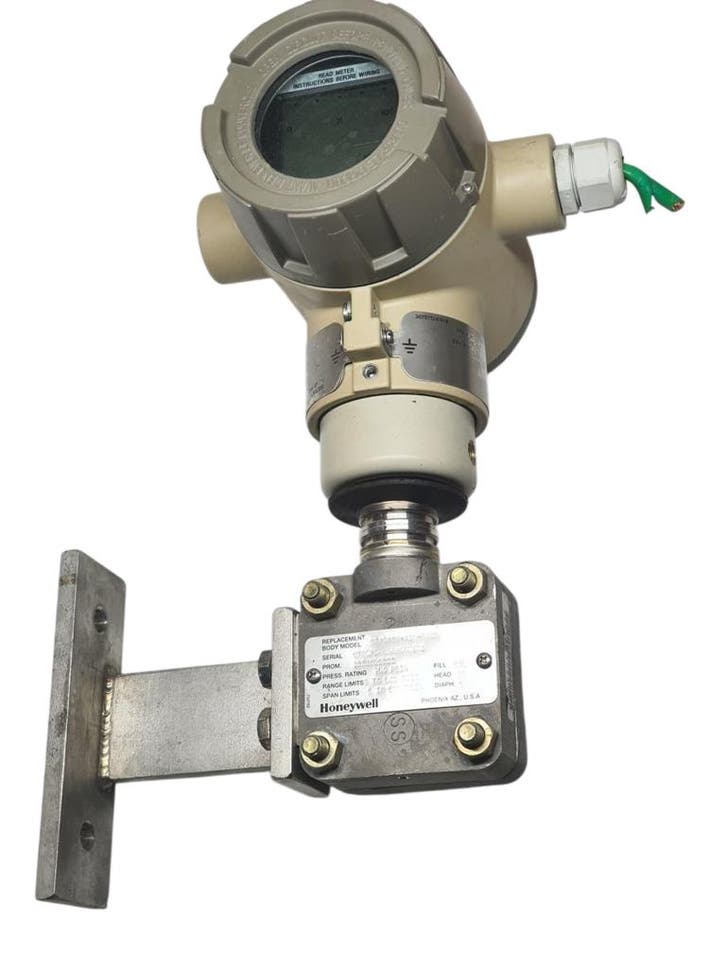

Honeywell STA940-E1G-00000-MB.SM.CO.E1D9-6138
Category Parameter Specification General / Model Model STA940-E1G-00000-MB.SM.CO.E1D9-6138 Transmitter Type Absolute pressure transmitter (ST 3000 Series 900) Pressure & Measurement Measurement Type Absolute pressure (referenced to vacuum) Pressure Rating 0-500 PSIA Span Limits 5-500 PSIA Replacement Body Model STA940V-A10-6038 Serial Number 97097045366000101 Fill SIL Head Material Stainless Steel Diaphragm Material Stainless Steel Electrical / Output Supply Voltage 11-42 VDC Output 4-20 mA analog (optional HART® / DE digital communication) Sensor Technology Piezoresistive Diagnostics Built-in self-diagnostics and failure reporting Environment & Construction Operating Temperature ~?40 °C to +80 °C (typical industrial range) Housing Rugged industrial enclosure, stainless steel wetted parts Mounting Process connection, optional mounting bracket Weight ~9 lbs (typical)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Category Parameter Specification General / Model Model STA940-E1G-00000-MB.SM.CO.E1D9-6138 Transmitter Type Absolute pressure transmitter (ST 3000 Series 900) Pressure & Measurement Measurement Type Absolute pressure (referenced to vacuum) Pressure Rating 0-500 PSIA Span Limits 5-500 PSIA Replacement Body Model STA940V-A10-6038 Serial Number 97097045366000101 Fill SIL Head Material Stainless Steel Diaphragm Material Stainless Steel Electrical / Output Supply Voltage 11-42 VDC Output 4-20 mA analog (optional HART® / DE digital communication) Sensor Technology Piezoresistive Diagnostics Built-in self-diagnostics and failure reporting Environment & Construction Operating Temperature ~?40 °C to +80 °C (typical industrial range) Housing Rugged industrial enclosure, stainless steel wetted parts Mounting Process connection, optional mounting bracket Weight ~9 lbs (typical)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
