Kenmerken
Conditie
Nieuw
Beschrijving

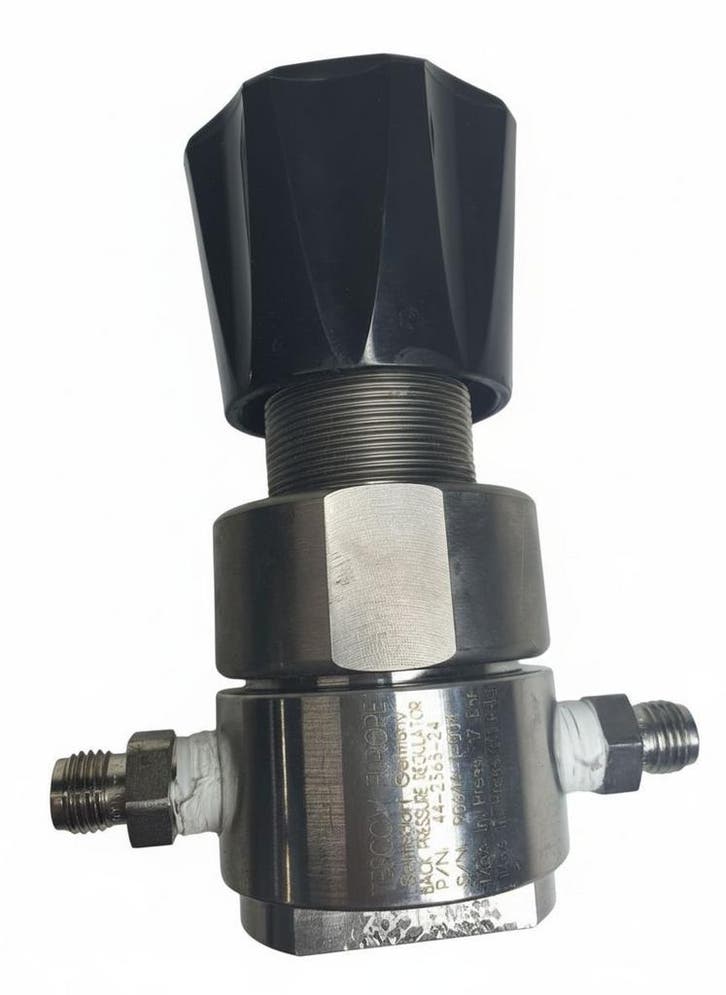

De Tescom 44-2363-24 is een eentraps tegendrukregelaar.
Category Parameter Manufacturer Tescom (Emerson) Series 44-2300 Single-Stage Back-Pressure Regulator Model 44-2363-24 Regulator Type Single-stage back-pressure / relief regulator Adjustable Outlet Pressure Range 0-250 psig (0-17.2 bar) Design Pressure 150 % of maximum rated pressure Leakage Internal: bubble-tightExternal: Operating Temperature Range ?40 °C to +60 °C (?40 °F to +140 °F) Flow Coefficient Cv = 0.08 Maximum Operating Torque 30 in-lbs / 3.4 N·m Ports 1/4? NPTF (inlet and outlet) Body Material 316 Stainless Steel, Brass, or Monel (depending on configuration) Bonnet / Cover Material 300-series Stainless Steel or Brass Seat Material PCTFE (CTFE) Diaphragm Material 316 Stainless Steel or Elgiloy® (cobalt-chromium-nickel alloy) Other Components 316 Stainless Steel or Monel (for Monel body variants) Cleaning Standards CGA 4.1 and ASTM G93 (ultraclean applications) Weight (without gauges) ~0.9 kg / 2 lb
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Category Parameter Manufacturer Tescom (Emerson) Series 44-2300 Single-Stage Back-Pressure Regulator Model 44-2363-24 Regulator Type Single-stage back-pressure / relief regulator Adjustable Outlet Pressure Range 0-250 psig (0-17.2 bar) Design Pressure 150 % of maximum rated pressure Leakage Internal: bubble-tightExternal: Operating Temperature Range ?40 °C to +60 °C (?40 °F to +140 °F) Flow Coefficient Cv = 0.08 Maximum Operating Torque 30 in-lbs / 3.4 N·m Ports 1/4? NPTF (inlet and outlet) Body Material 316 Stainless Steel, Brass, or Monel (depending on configuration) Bonnet / Cover Material 300-series Stainless Steel or Brass Seat Material PCTFE (CTFE) Diaphragm Material 316 Stainless Steel or Elgiloy® (cobalt-chromium-nickel alloy) Other Components 316 Stainless Steel or Monel (for Monel body variants) Cleaning Standards CGA 4.1 and ASTM G93 (ultraclean applications) Weight (without gauges) ~0.9 kg / 2 lb
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
