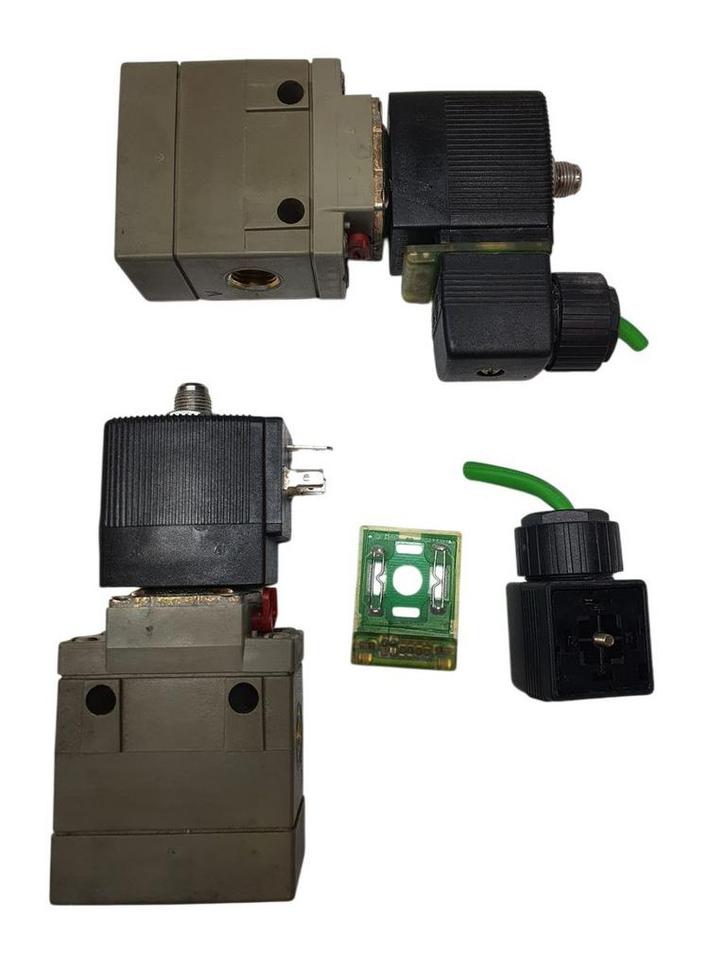

Burkert Type 5411 C 6.0 NBR PA G1/4 (3/2-way pneumatic solenoid valve)

Type 5411 is a pilot operated 3/2 way solenoid valve with manual override as standard. The body includes a servo piston with the seat seals. Through pilot channels, the servo piston is either loaded with input pressure or released. A minimum pressure difference of 1 bar is required for switching. The vent port is integrated as a sintered bronze silencer directly in the valve body. The valves can be combined (up to 6 valves) on a single-channel manifold with common pressure supply. Product variants described in the data sheet may differ from the product presentation and description. Can be combined with
Specification Details  Product Type 3/2-way pilot-operated pneumatic solenoid valve Circuit Function Type C - 3/2 way, servo-controlled, normally closed (solenoid valve) Nominal Diameter DN 6.0 mm Seal Material NBR (Nitrile) Body Material Reinforced polyamide with moulded-in brass threads  Orifice / Flow QNn = 900 l/min (at 6 bar inlet and 1 bar ?p)  Pressure Range 1.10 bar (overpressure to atmospheric)  Port Connection G 1/4  Minimum Operating Pressure ? ? 1 bar required for switching  Operating Medium Neutral media, e.g. compressed air (lubricated or unlubricated) Medium Temperature -10 °C . +60 °C Ambient Temperature Up to +55 °C (standard version)  Electrical Operating Voltage 24 V DC; 24/110/230 V AC (50.60 Hz)  Power Consumption DC: ~2 W; AC: 11 VA (inrush), 6 VA (hold)  Voltage Tolerance ±10 %  Switching Times Opening: ~50 ms; Closing: ~30 ms  Duty Cycle 100 % ED (continuous rating)  Electrical Connector DIN EN 175301-803 Form A (for cable plug Type 2518) Degree of Protection IP65 with cable plug Approvals/Standards Compressed air quality ISO 8573-1: class 7.4.4  Installation Position Preferably solenoid upright; vent must not be blocked
