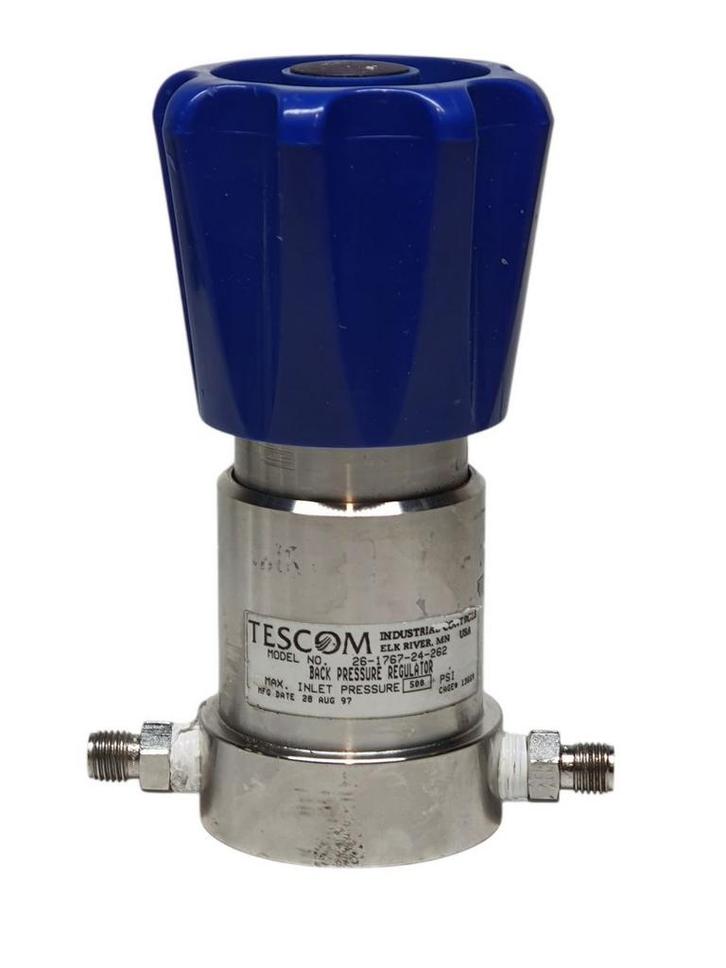

Emerson/TESCOM 26-1767-24-262 Control Pressure Regulator 2-way
A precision pressure regulator designed to control and stabilize gas or fluid pressure downstream from a high-pressure source. Tescom regulators are commonly used in industrial process control, instrumentation, testing systems, and fluid power applications where accurate pressure regulation is required.
Specification
Attribute Details Series 26-1700 Type Control Pressure Regulator (spring-loaded, manual) Maximum Inlet Pressure 500 psi Control (Outlet) Pressure Ranges Available 5-500 Operating Temperature -40 °F to 165 °F (-40 °C to 74 °C) Proof Pressure 150 % of maximum rated pressure Leakage Bubble-tight shut-off Accuracy ±1 % of central pressure range Body Material 316 Stainless Steel Seal Material CTFE / PTFE depending on variant O-ring Buna-N / Nitrile Trim Material 300 Series Stainless Steel Flow Capacity (Cv) Typically Cv = 0.10 or Cv = 0.14 (model dependent) Connection Options SAE / NPTF / MS33649 / High or Medium Pressure fittings; flange options available Maximum Torque for Adjustment ~40 in-lbs / 4.5 N·m Weight ~5 lbs / ~2.2 kg Applications Pump discharge pressure control, reactor pressure control, over-pressurization relief
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
A precision pressure regulator designed to control and stabilize gas or fluid pressure downstream from a high-pressure source. Tescom regulators are commonly used in industrial process control, instrumentation, testing systems, and fluid power applications where accurate pressure regulation is required.
Specification
Attribute Details Series 26-1700 Type Control Pressure Regulator (spring-loaded, manual) Maximum Inlet Pressure 500 psi Control (Outlet) Pressure Ranges Available 5-500 Operating Temperature -40 °F to 165 °F (-40 °C to 74 °C) Proof Pressure 150 % of maximum rated pressure Leakage Bubble-tight shut-off Accuracy ±1 % of central pressure range Body Material 316 Stainless Steel Seal Material CTFE / PTFE depending on variant O-ring Buna-N / Nitrile Trim Material 300 Series Stainless Steel Flow Capacity (Cv) Typically Cv = 0.10 or Cv = 0.14 (model dependent) Connection Options SAE / NPTF / MS33649 / High or Medium Pressure fittings; flange options available Maximum Torque for Adjustment ~40 in-lbs / 4.5 N·m Weight ~5 lbs / ~2.2 kg Applications Pump discharge pressure control, reactor pressure control, over-pressurization relief
