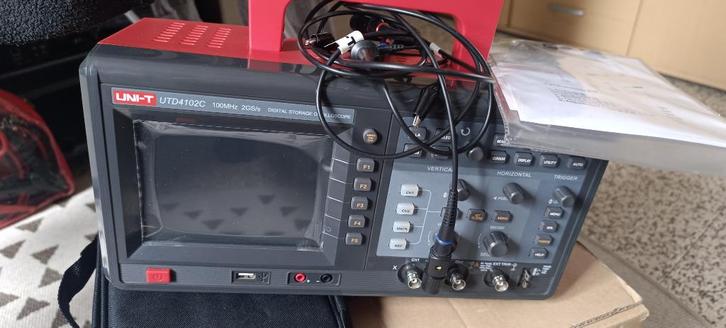

UNI-T UT4102C Digital Storage Oscilloscope 100MHz
Specifications Bandwidth : 100 MHz
Rise Time : <=3.5 ns
Sample Range : 2GS/s
Refresh Rate : 2000 wfms/s
Vertical Sensitivity : 2mV ~ 5V/div
Record Length (Max) : 24k
Sample Rate : Real time 2GS/s, Equivalent : 50GS/s
Scan Time Base : 5ns ~ 50s/div
Trigger Type : Edge, Pulse, Video, Slope and Alternate, Code
Automatic Waveform Measurements : 27
Ports - Standard : USB Device, USB Host; PASS/FAIL, Optional : LAN and GPIB
Mathematics : Add, Subtract, Multiply, Divide, Reverse and FFT
Applications : College Education, R&D, Electronic product assemble line, Industrial Control etc.
Other Features : Digital Multimeter and Logic Analyzer, 6 Digits Frequency Meter, Special Dual Time Base, FFT
Power : 100 - 240VACRMS, 45Hz - 440Hz, CAT II
LCD Size : Diagonal 145mm (5.7 in)
Product Color : Red and Grey
Weight : 3.8kg (8.3 lbs)
Dimensions : 330 x 165 x 165mm (12.9 x 6.4 x 6.4 in)
