jw1338: Print relais Schrack RZH9-001 spoel 24V 1x wisselZie omschrijving
Kenmerken
Conditie
Zo goed als nieuw
Type
Elektriciteit
Beschrijving

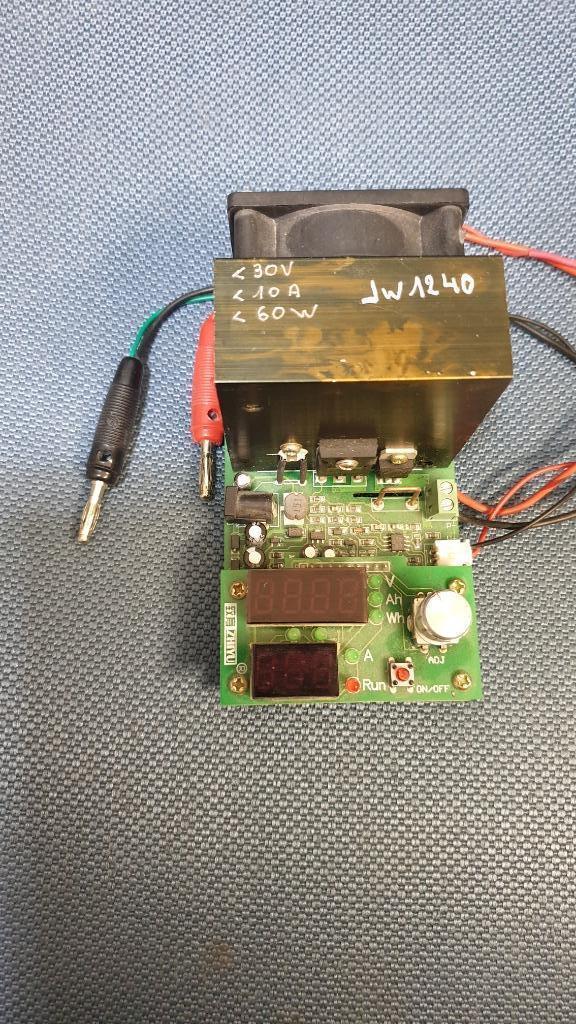

dus een electronische belasting om voedingen en / of batterijen te testen. max voltage: 30V, 10A , of 60Watt.
dus een electronische belasting om voedingen en / of batterijen te testen.
Note: This product is a professional testing equipment , requiring the user must have some basic electronic ( example: Users should understand what is the meaning of the voltage and current capacity Ah , etc. ) , or you may be unable to properly use the device , possibly mishandled cause unnecessary damage caused by the test device loss!
externe voeding nodig:DC12V voltage en 0.5A
Operating modes: single mode constant current (CC)
Discharge current: 0.20-9.99A stepper 0.1A or0.01A
Discharge current maximum error: 0.7% +-0.01A
The maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Offline (termination) Voltage Range: 1.0-25.0V stepping 1V or 0.1V
Discharge voltage: 1.00-30.00V
Maximum power: 60W super power automatically limits the maximum current .
(for example, up to 60W when it can open 9.99A 6V
and 20V maximum at the only open 3.00A)
dus een electronische belasting om voedingen en / of batterijen te testen.
Note: This product is a professional testing equipment , requiring the user must have some basic electronic ( example: Users should understand what is the meaning of the voltage and current capacity Ah , etc. ) , or you may be unable to properly use the device , possibly mishandled cause unnecessary damage caused by the test device loss!
externe voeding nodig:DC12V voltage en 0.5A
Operating modes: single mode constant current (CC)
Discharge current: 0.20-9.99A stepper 0.1A or0.01A
Discharge current maximum error: 0.7% +-0.01A
The maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Offline (termination) Voltage Range: 1.0-25.0V stepping 1V or 0.1V
Discharge voltage: 1.00-30.00V
Maximum power: 60W super power automatically limits the maximum current .
(for example, up to 60W when it can open 9.99A 6V
and 20V maximum at the only open 3.00A)
...
...
...
...
...
...
...
...
...
...
...
...
