Kenmerken
Conditie
Gebruikt
Chipset
Bustype
PCI-Express 3.0
Soort geheugen
Overige soorten
Handelsnaam fabrikant
SAPPHIRE
Postadres fabrikant
-
E-mailadres fabrikant
-
Aansluitingen
HDMI, DisplayPort
Beschrijving

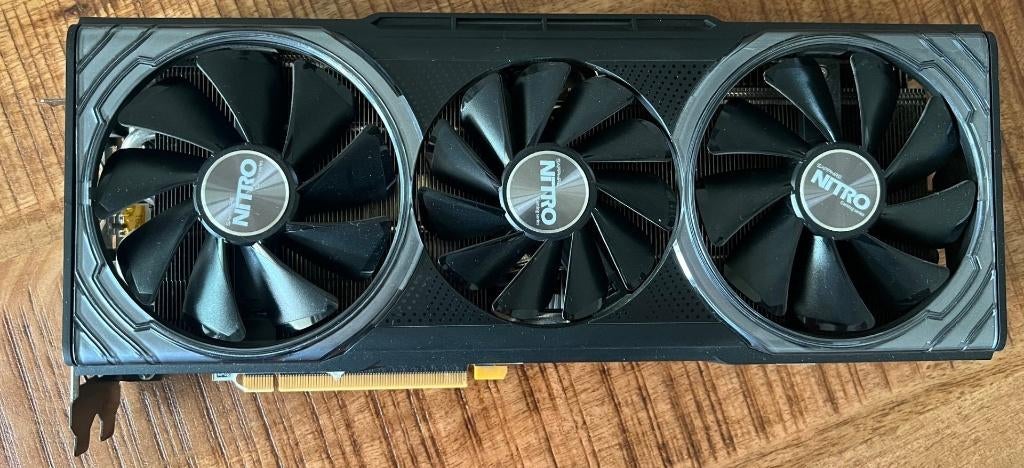

Te Koop zeer goed onderhouden AMD VEGA64 SAPPHIRE NITRO+ 8GB HBM2 SAMSUNG MEMORY.
Graphics Processor
GPU Name: Vega 10
GPU Variant: Vega 10 XT (215-0894200)
Architecture: GCN 5.0
Foundry: GlobalFoundries
Process Size: 14 nm
Transistors: 12,500 million
Density: 25.3M / mm²
Die Size: 495 mm²
Chip Package: BGA-2013
Graphics Card
Generation: Vega (RX Vega)
Predecessor: Polaris
Successor: Navi
Driver Support: Legacy
Bus Interface: PCIe 3.0 x16
Clock Speeds
Base Clock: 1247 MHz / 1373 MHz (+10%)
Boost Clock: 1546 MHz / 1580 MHz (+2%)
SOC Clock: 960 MHz
Memory
Memory Clock: 945 MHz (1890 Mbps effective)
Memory Size: 8 GB
Memory Type: HBM2
Memory Bus: 2048 bit
Bandwidth: 483.8 GB/s
Render Configuration
Shading Units: 4096
TMUs: 256
ROPs: 64
Compute Units: 64
L1 Cache: 16 KB (per CU)
L2 Cache: 4 MB
Theoretical Performance
Pixel Rate: 98.94 GPixel/s / 101.1 GPixel/s
Texture Rate: 395.8 GTexel/s / 404.5 GTexel/s
FP16 (half): 25.33 TFLOPS / 25.89 TFLOPS (2:1)
FP32 (float): 12.66 TFLOPS / 12.94 TFLOPS
FP64 (double): 791.6 GFLOPS / 809.0 GFLOPS (1:16)
Board Design
Slot Width: Dual-slot / Triple-slot
Length: 280 mm / 310 mm (11 in / 12.2 in)
TDP: 295 W
Suggested PSU: 600 W
Outputs
Configuration 1: 1× HDMI 2.0b, 3× DisplayPort 1.4a
Configuration 2: 2× HDMI 2.0b, 2× DisplayPort 1.4a
Power
Power Connectors: 2× 8-pin
Graphics Processor
GPU Name: Vega 10
GPU Variant: Vega 10 XT (215-0894200)
Architecture: GCN 5.0
Foundry: GlobalFoundries
Process Size: 14 nm
Transistors: 12,500 million
Density: 25.3M / mm²
Die Size: 495 mm²
Chip Package: BGA-2013
Graphics Card
Generation: Vega (RX Vega)
Predecessor: Polaris
Successor: Navi
Driver Support: Legacy
Bus Interface: PCIe 3.0 x16
Clock Speeds
Base Clock: 1247 MHz / 1373 MHz (+10%)
Boost Clock: 1546 MHz / 1580 MHz (+2%)
SOC Clock: 960 MHz
Memory
Memory Clock: 945 MHz (1890 Mbps effective)
Memory Size: 8 GB
Memory Type: HBM2
Memory Bus: 2048 bit
Bandwidth: 483.8 GB/s
Render Configuration
Shading Units: 4096
TMUs: 256
ROPs: 64
Compute Units: 64
L1 Cache: 16 KB (per CU)
L2 Cache: 4 MB
Theoretical Performance
Pixel Rate: 98.94 GPixel/s / 101.1 GPixel/s
Texture Rate: 395.8 GTexel/s / 404.5 GTexel/s
FP16 (half): 25.33 TFLOPS / 25.89 TFLOPS (2:1)
FP32 (float): 12.66 TFLOPS / 12.94 TFLOPS
FP64 (double): 791.6 GFLOPS / 809.0 GFLOPS (1:16)
Board Design
Slot Width: Dual-slot / Triple-slot
Length: 280 mm / 310 mm (11 in / 12.2 in)
TDP: 295 W
Suggested PSU: 600 W
Outputs
Configuration 1: 1× HDMI 2.0b, 3× DisplayPort 1.4a
Configuration 2: 2× HDMI 2.0b, 2× DisplayPort 1.4a
Power
Power Connectors: 2× 8-pin
...
...
...
...
...
...
...
...
...
...
...
...
