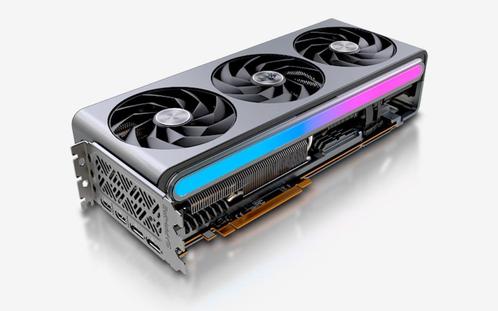

Sapphire Nitro+ Radeon 7900xtx

GPUAMD Radeon™ RX 7900 XTX Graphics Card
5nm GPU
AMD RDNA™ 3 ArchitectureEngine Clock

Boost Clock: Up to 2680 MHz

Game Clock: Up to 2510 MHz


Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors6144Compute Units96 CU (with RT+AI Accelerators)Infinity Cache96MBRay Accelerators96Memory Size/Bus24GB/384 bit GDDR6Memory Clock20 Gbps EffectiveDisplaysMaximum 4 DisplaysResolution

HDMI™: 7680×4320

DisplayPort 2.1: 7680×4320


InterfacePCI-Express 4.0 x16
Output

2x HDMI

2x DisplayPort


BIOS Support

Dual UEFI


Game Index4K
Sapphire Features

Dual BIOS

TriXX Software Switch

Premium Digital Power Design

Ultra High Performance Conductive Polymer Aluminum Capacitors

Fuse Protection

Tri-X Cooling Technology

Vapor-X Cooling

High TG Copper PCB

Optimized Composite Heatpipe

Intelligent Fan Control

Precision Fan Control

Metal Backplate with ARGB

Dual ARGB Light Bar

Two-Ball Bearing Fans

Angular Velocity Fan Blade

Assistive System Fan Control

Die Casted Aluminum-Magnesium Alloy Frame

Frontplate Heatsink for VRM

Wave Fin Design

V Shape Fin Design for GPU Cooling

TriXX Supported

Fan Check

Fan Quick Connect

TriXX Boost

NITRO Glow

External RGB LED MB Synchronization


Accessories Bundled

Graphics Card Supporter

ARGB Extension Cable


AMD Features

AMD RDNA™ 3 Architecture

96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)

96MB AMD Infinity Cache™ Technology

DisplayPort™ 2.1 Support

AMD Radiance Display™ Engine

24GB GDDR6 on 384-Bit Memory Bus

PCI® Express 4.0 ready

AMD FidelityFX™ Super Resolution technology

Microsoft® DirectX® 12 Ultimate Support

Microsoft® DirectStorage Support

Vulkan® Optimized

AMD Smart Technologies

AMD Software: Adrenalin Edition™

AMD Noise Suppression

AMD Privacy View

AMD Radeon™ Super Resolution technology

AMD Link

AMD FreeSync™ Technology*


Cooler Type3 Fans
Vapor-X CoolingForm Factor3.5 slot, ATX
Dimension: 320(L)X 135.75(W)X 71.6 (H)mmPower Consumption420W Total Board Power
OSLinux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement

Minimum 800 Watt Power Supply

3 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
