Weg wegens teveel aangeschaft (3 Kits i.p.v. 2)

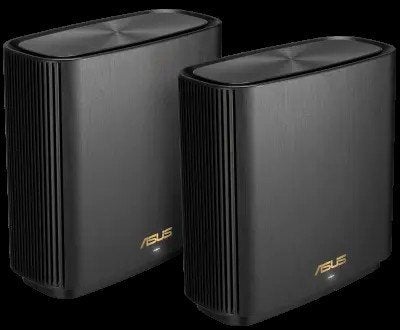

Model ASUS ZenWiFi XT9

Model Name XT9 (B-2-PK)

Network Standard IPv6, IPv4, WiFi 6 (802.11ax), WiFi 5 (802.11ac), WiFi 4 (802.11n), IEEE 802.11g, IEEE 802.11b en IEEE 802.11a

Product Segment AX7800 ultimate AX performance: 574+2402+4804Mbps

WiFi Data Rate WiFi 6 (802.11ax) (5GHz-2): up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-1): up to 2402 Mbps
802.11ax (2,4 GHz): tot 1300 Mbps
802.11ax (2,4 GHz): tot 450 Mbps
802.11n: tot 400 Mbps
802.11g: tot 54 Mbps
802.11b: tot 11 Mbps
802.11a: tot 54 Mbps

Antenna Internal antenna x 6

Transmit / Receive 5GHz-2 4x4
5 GHz-1 2 x 2
2,4 GHz 2 x 2

Processor 1.7 GHz quad-core processor

Memory 256 MB Flash
512 MB RAM

Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

• The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency 2.4G Hz, 5 GHz-1, 5 GHz-2

Operating Mode Wireless router mode
Access point mode

I/O Ports RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1

Buttons WPS Button, Reset Button, Power Switch

LED Indicator Power x 1

Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3 A current

Product Weight (g) 740g

Product Dimensions 160 x 75 x 161.5 mm

AiMesh AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control "Allow you to block access to unwanted websites and apps.", Parental Control - Safe Browsing, Customized Internet Schedule

Router APP APP: ASUS Router APP

Guest Network Support Guest Network, • Maximum Guest Network Rule : Max 9 rules, Guest Network Connection Time Limit

Security WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall, • Maximum Firewall Keyword Filter : Max 64 rules, • Maximum Firewall Network Service Filter : Max 32 rules, • Maximum Firewall URL Filter : Max 64 rules

AiProtection AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

VPN Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

Traffic Control Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Website History

WAN Dual WAN, DMZ, DDNS

LAN IGMP Snooping, IPTV, LAN Link Aggregation, Wake on LAN (WOL)

Wireless UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : Max 64 rules, Wireless Scheduler, Airtime Fairness, Ja, Universal Beamforming, Explicit Beamforming

USB application File System: FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4, Ja, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Ja

Administration Ja, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
