ASUS RT-AX86U Pro AX5700 Dual Band 2.5G Port WiFi 6 Gaming W

Sold "as-is" in a used condition. The device was manufactured in 2023 and purchased in 2024. No box or accessories, you are purchasing the router and the power adapter only.

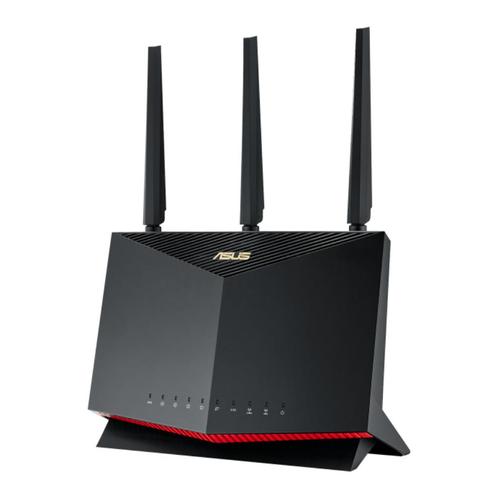

RT-AX86U Pro
AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Upgraded Parental Controls, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding

• High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 5700 Mbps, with 160 MHz channels for better efficiency and throughput
• Mobile Game Mode – Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
• Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage
• A Safer Browsing Experience – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.

Model

• RT-AX86U Pro

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX5700 ultimate AX performance : 861+4804 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 450 Mbps
• WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

• External antenna x 3
• Internal PCB antenna x 1

Transmit / Receive

• 2.4GHz 3x3
• 5GHz 4x4

Processor 2.0GHz quad-core processor Memory 256 MB Flash and 1 GB RAM Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 GHz / 5 GHz

Operating Mode

• Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode

I/O Ports

• RJ45 for 10/100/1000 BaseT for WAN x 1
• RJ45 for 10/100/1000 BaseT for LAN x 4
• Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
• 2.5G/1Gbps multi-Gig port (configurable)
• -- LAN: 4xGbE (2x port aggregation LAN)
• -- WAN: 1 GbE
• -- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
• -- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
• USB 3.2 Gen1 x1, 2.0 x1

Buttons

• WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 2.5G Port x 1
• WAN x 1
• LAN x 4
• WPS x 1

Power Supply

• 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
• 12 V with max.3 A current / 19.5 V with max. 2.31 A current

AiMesh

• Primary AiMesh Router
• AiMesh Node

Game

• Game Boost / Acceleration
• Mobile Game Mode
• Gear Accelerator

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Safe Browsing
• Customized Internet Schedule
• • Maximum Parental Control Profile : 64
• • Maximum Parental Control Content Cilter Rule : 64

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security

• AiProtection
• WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

AiProtection

• • Router Security Assessment
• • Malicious Site Blocking
• • Two-Way IPS
• • Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
• • Maximum Port Forwarding Rule : 64
• Port triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
