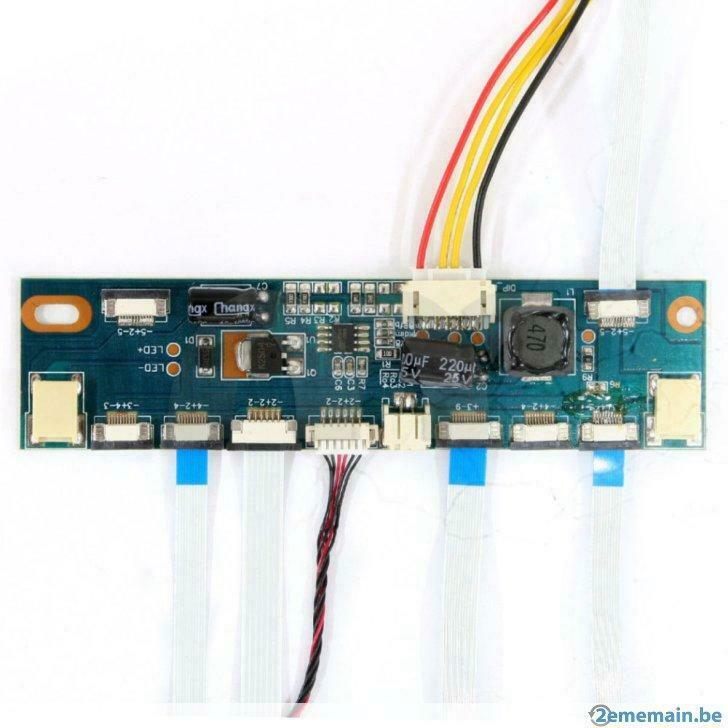

LCD Inverter Board For Test LED Panel


Détails de l'article

Output Type: Multiple
Output Power: 1 - 50W
is_customized: Yes
Type:DC/DC Converters
Size: 12cm*3cm
Input Voltage: 12-20V
Output Voltage: 12-50V


This board support mainly type LED strips in the monitor backlight. So it can be used as a universal LED driver board or a test board.

12 outputs on the board.
Support :15'' to 24'' LED monitor
Input voltage: 6 to 20V

Support LED Port :

-5+2-5: single 12pin

-3+4-3: double or single 10pin

-4+2-4: double or single 10pin

+3-9:12pin

-2+2-2:(samsung 6pin),
-1+1:2pin
-2+2-2:1.0 6PIN
-2+2-2:0.5 6pin

2PIN:BH2.0
BH 3.5 double or single BH 3.5

Inclued: board,input cable*1,output cable*6

Etat: Neuf
