Condition: Refurbished

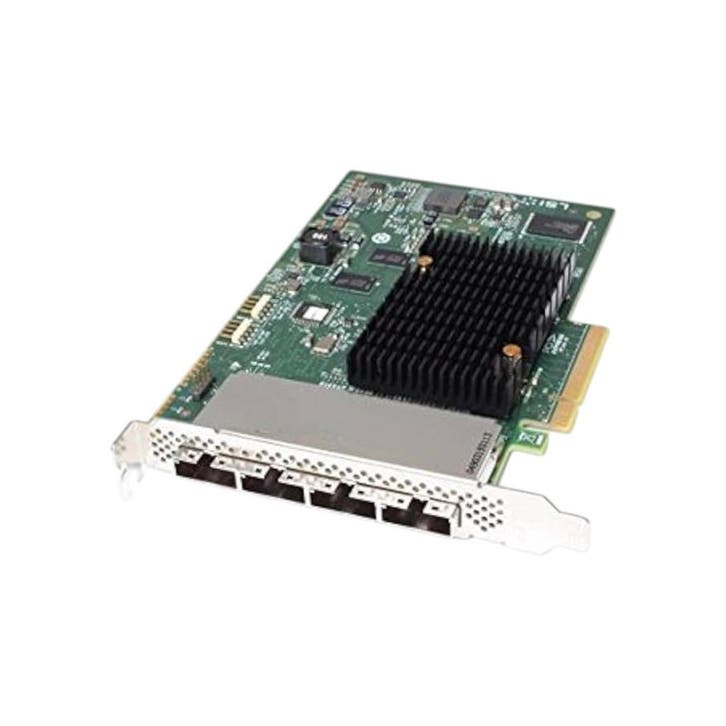

The SAS 9201-16E is a 16-port, 6Gb/s SAS/SATA PCIe 2.0 x8 host bus adapter used to connect a server or workstation to external disk enclosures (JBODs). It provides four external Mini-SAS SFF-8088 ports, each carrying 4 SAS lanes, enabling connection to up to 16 SAS or SATA drives or expansion enclosures.

Features:

• Interface: PCIe 2.0 x8 add-in card Ports: 4 × external Mini-SAS (SFF-8088) Total connectivity: 16 SAS lanes (non-RAID HBA mode)
• Speed: 6Gb/s per SAS lane Controller: LSI SAS2116 (Fusion-MPT architecture)
• Device support: up to 512 SAS/SATA devices via expanders Form factor: Full-height, half-length PCIe card
• Use case: JBOD arrays, DAS enclosures, external storage expansion

Whats in the Box?

• SAS9201-16E

Specifications:

General Information

• PCI Card Form Factor: Plug-in Card

Inputs/Outputs

• Number of Ports: 4
• Expansion Card Computer Interface: PCIe
• I/O Expansion Card ports: Mini-SAS
