Condition: Refurbished

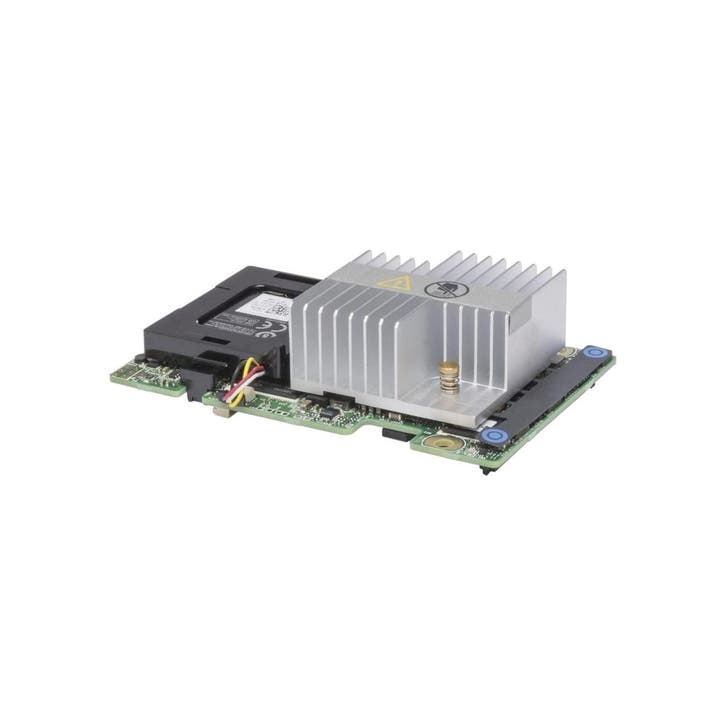

The Dell 5CT6D is a hardware RAID controller card used in Dell PowerEdge enterprise servers. It is part of the PERC H710 series (Mini Mono form factor) and is designed to manage internal hard drives connected through SAS or SATA interfaces. This controller provides enterprise-level storage management, allowing multiple drives to be configured into RAID arrays for performance, redundancy, or both. It connects internally to the server motherboard via a proprietary PCIe-based interface (Mini Mono slot) and connects to drive backplanes using internal Mini-SAS cables. The card includes a dedicated RAID processor and 512MB of cache memory, supporting advanced RAID levels and improving disk I/O performance for server workloads such as databases, virtualization, and file storage systems.

Features:

• Hardware RAID controller (Dell PERC H710 family) Supports SAS / SATA 6Gb/s drives
• 8 internal SAS ports via Mini-SAS connectors PCIe-based internal connection (proprietary Mini Mono slot)
• RAID levels: 0, 1, 5, 6, 10, 50, 60 512MB cache memory (with battery/flash backup depending on config) Supports up to 32 drives (system dependent)
• Enterprise servers (Dell PowerEdge R320 / R620 / R720 series) RAID storage for virtualization and databases High-reliability internal storage management Data redundancy and performance optimization

Whats in the Box?

• 5CT6D

Specifications:

General Information

• PCI Card Form Factor: Plug-in Card

Inputs/Outputs

• Number of Ports: 8
• Expansion Card Computer Interface: PCIe
• I/O Expansion Card ports: Mini-SAS, 0
