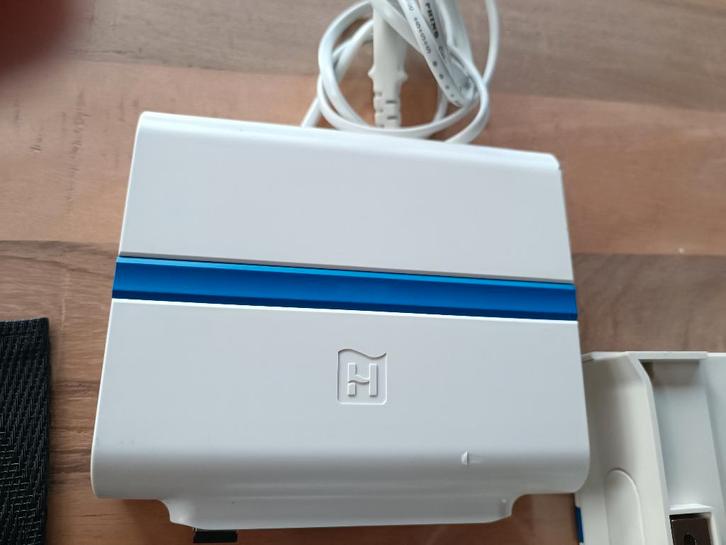

HOG204 Optical Network Unit HOG204 E RFoG ONU with Protective Earth

Product Item : HOG204
Product Brand : Hirschmann
Product Description
Other Models
HOG204 Optical Network Unit HOG204 E RFoG ONU with Protective Earth

The HOG204 Optical Network Unit is designed to support FTTH and FTTB build networks. The transceiver has one combined optical in/output (WDM), the ONU is provided with 2 pairs of output ports, one pair downstream only and one pair upstream and downstream capable including DOCSIS 3.1 support. The optical Automatic Gain Control keeps the output level constant independent from the optical input power. Output level, mute and other functions are controlled and activated by the most advanced CPU.Over the USB port several settings can be configured during installation and configuration by the RFoG-specialist. Return path signals transmission is achieved by a fixed laser module.

EAN 8719632685944

Name HOG204 E

Brand Hirschmann Multimedia

Description RFoG ONU with Protective Earth

Status Available

Warranty period 1 year warranty

Mechanical specifications Dimensions (mm) 150x130x50 mm

Type of connectors input SC/APC 8°

Type of connectors output 4 x F female

Other connectors IEC female for MoCA module on side + USB A female for installation

Ground connection M4

Main power supply connector CEE7/16 Europlug

Optical specifications Wavelength

US: 1610 nm

DS: 1540-1565 nm

Optical input power range +3 to -8 dBm

Optical output level (max.) 3 dBm

Optical AGC range +1 to -4 dBm

Laser type Isolated DFB

Laser RIN < -155 dBc/Hz

Equivalent input noise current level ir 3.5 pA/sqrtHz

Spectral sensitivity > 0.85 A/W

Electrical specifications

Frequency range

US: 5-65 / 5-204 MHz

DS: 85-1218 / 258-1218 MHz

MoCA: 1350-1650 MHz

Impedance 75 Ω

Output level 2 x 65.5 dBμV & 2 x 59.5 dBμV

Return Loss > 18 dB @ 40 MHz -1.5dB/octave

Flatness < ± 1 dB

Nominal US input level 97 dBuV

MoCA Insertion loss (typical) 30 dB

Screening effectiveness (typical)

(30 – 470 MHz): > Class A (passives) + 10dB

(470 – 1000MHz): > Class A (passives) + 20dB

(1000 – 1218 MHz): > Class A (passives) + 30dB

Power specifications

Type of PSU

Internal

Power consumption (W)

3.7 W (6.7 W including optional plug-in module)

Operating voltage (V) 185-265 VAC sine

Firmware

Firmware Y

Environmental specifications

Temperature Range -20 - +55°C

Overvoltage protection acc. EN 61000 4-5

2 kV, 1.2 μs / 50 μs surge to RF ports, every port

Norms

Protection class IP 50

Features of HOG204 Optical Network Unit

Automatic change Upstream frequency range for Docsis 3.0 to Docsis 3.1 migration without truck rolls, switchover initiated by intelligent automated detection

Ready to support plugin MoCA unit for Gigabit home network over coax, powered from HOG to simplify installation

Designed for MoCA high D band to allow coexistance with Docsis 3.1 networks

Integrated very efficient and reliable power supply

When combined with SPARK multi diode receiver, HOG provides performance monitoring data to the SPARK without any additional configuration or additional equipment, free of charge

4 outputs to connect multiple devices in home without additional splitters or tabs. 2 ports designed for Docsis use to support a Cable Modem combined with Docsis based Setop Boxes

Esthetic design, optimized for quick installation

The Optical Network Unit is equipped with a single wavelength 1610nm, single longitudinal mode, distributed feedback laser (DFB).The HOG204 can be remotely managed when connected via the SPARK series regarding its general parameters on levels and operations.The HOG204 comes with integrated power and RF- management and connection for external or "clickable" MoCA® enabled devices. This MoCA® traffic is available on all four output ports. Allowing internet service over the coax without DOCSIS.
