Condition: Refurbished

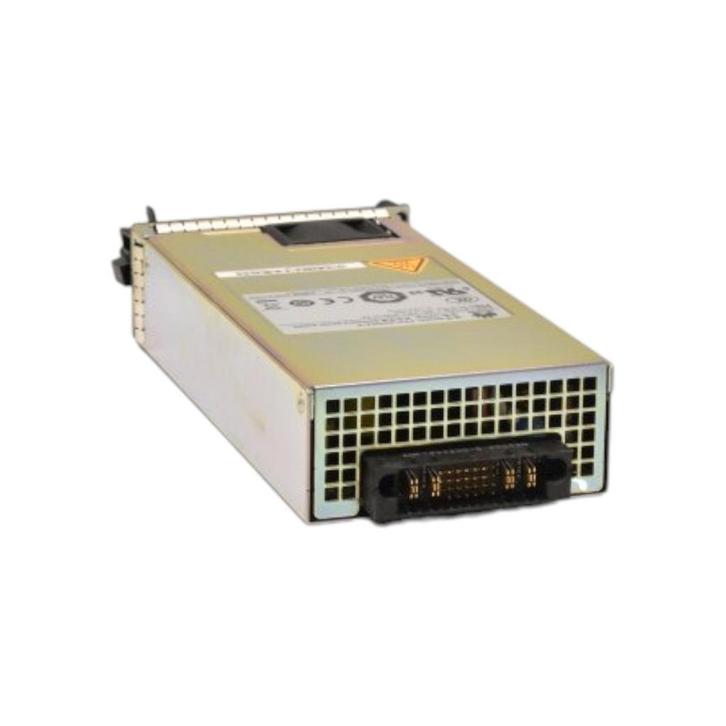

The PAC600WAF is a 600W AC power supply module designed for use with Huawei’s enterprisenetwork switches (e.g., their CloudEngine5800/6800/8800/9800 series). It provides reliable power delivery, integrated protection features, hotswappable capability, and is distinguishable by its fronttoback airflow design (air intake on the powermodule panel).

Features:

• Power output: 600W rated output, with rated output voltage of 12V and output current of up to 50A.
• Input voltage range: 100VAC to 240VAC at 50/60Hz is the rated input; maximum input is 90VAC to 290VAC (47–63Hz) for the AC version.
• Airflow orientation: For the “F” variant (PAC600WAF) the airflow is front back, meaning air is drawn in at the module panel side and exhausts out the rear.
• Hotswappable: The module supports hotswap, allowing replacement without shutting down the entire system (depending on chassis/system configuration).

Whats in the Box?

• PAC-600WA-F

Specifications:

General Information

• Model Number: PAC-600WA-F
• Item Dimensions - H x W x D (IN): 1.6 x 3.9 x 8.1
• Airflow: AFO (Front to Back)
• Power Source Type: AC
• Item Weight (LBS): 2.2
