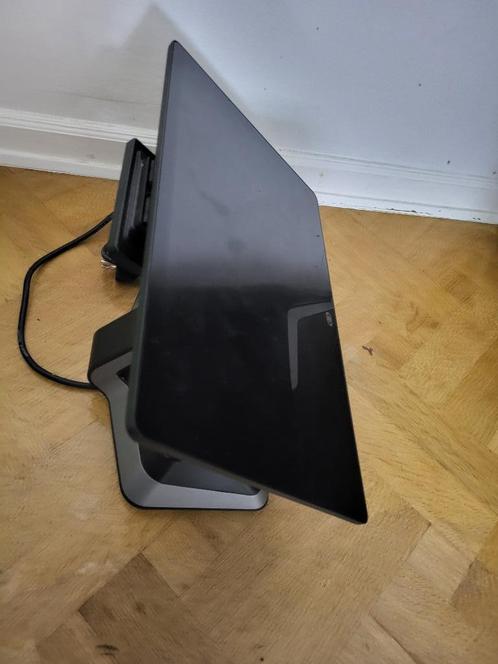

Retail Kassa systeem PC

2x beschikbaar

Product dimensions
Terminal with 15.6" LCD and table-top stand:
• WIDTH 15" (379,9mm)
• DEPTH 7.63" (193,8mm)
• HEIGHT 12" (305,6mm)
• WEIGHT 10.85lb (4,92kg)
Terminal with 15.6" LCD, MSR and table-top stand:
• WIDTH 15.25" (381,7mm)
• DEPTH 7.63" (193,8mm)
• HEIGHT 12" (305,6mm)
Terminal with 15.6" LCD, no MSR and no stand:
• WIDTH 15" (379,9mm)
• DEPTH* 1.22" (31mm)
• HEIGHT 9.33" (237mm)
• WEIGHT 4.0lb (1,81kg)

• Without hinge: Depth is 1.87" / 47,6mm with hinge

Processors (all 8th generation)
• Intel Core i5-8500T
• Intel Core i3-8100T
• Intel Celeron® G4900T
Motherboard technology
• Intel Q370 chip set (”Coffee Lake”)
• On-board RAID support
• USB type C support
• Four (4) USB headers (for internal peripheral connections)
Memory
• 8GB up to 32GB DDR4-2400 in 2 slots
Storage options
• Single 120GB M.2 solid-state drive
• Single 240GB M.2 or NVMe solid-state drive
• Dual/RAID 120GB M.2 solid-state drives
Operating systems
• Windows 10 IoT Enterprise 2019 LTSC
• Linux SLES 12 SP4 or later
Connections (Retail I/O in terminal stand*)
• USB ports
-2 x USB 3.0 5V PC
-3 x 12V powered USB (P-USB)
-1 x 24V powered USB (P-USB)
-1 x USB-C (to display head)
• 1 x Serial (DB9)
• 1 x Serial (RJ50)
• 1 x DisplayPort
• Cash drawer port (12 or 24 volt with dual drawer support)
• 10/100/1000MB (Gigabit) Ethernet LAN

• An alternate I/O option with 4 additional serial ports and with 2 fewer 12V P-USB ports is available

Displays
• 15.6” projected capacitive operator touchscreen with
16:9 aspect ratio, 1080 x1920 resolution
(18.5” 16:9 and 15” 4:3 planned for future release)
• All operator screen sizes support 10-point multi-touch
• Operator display flip with a rotation gyro
• Customer displays: All-Points-Addressable graphical display; 7”
or 10” color LCD touch or non-touch (XL7/XL10)
• All LCD displays: High-bright backlit displays with anti-glare
• Independent display I/O: Operator — internal connections;
Customer — DisplayPort
Integrated peripheral options
• 3-track encrypted MSR
• 2-in-1 key reader sign-in device (Addimat)
• Biometric fingerprint reader
• Wireless; 802.11 AC
• Imaging scanner
Other features
• Amplified internal speaker
• Image recovery button; Auto+ driver management
• Quiet, reliable single-fan design
