Zo goed als nieuw. 2x gebruikt.

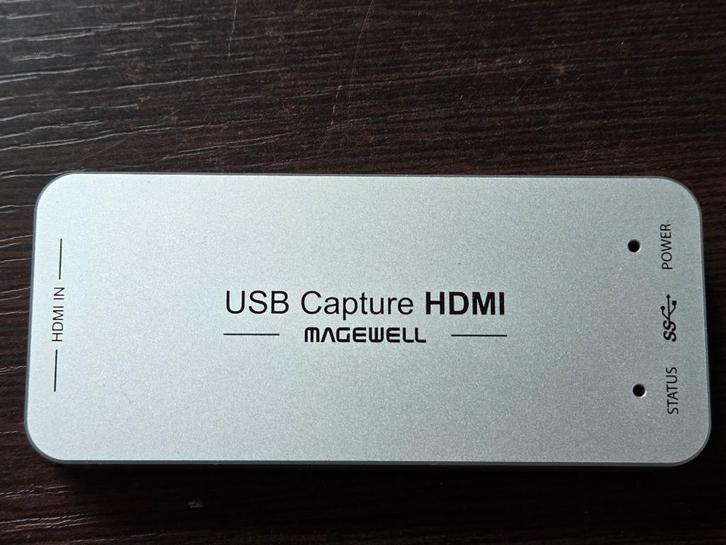

USB Capture HDMI Gen 2 Specifications

• 165M HDMI receiver, max input 2048x1080 60fps 4:4:4
• Custom EDID
• Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit
• Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
• HDMI interfaces: HDMI 1.4a

Process and Capture Features

• Video processing pipeline up to 160M pixels/s
• Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
• 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/75
• 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
• 720x576p25
• 720x480p30

• Support for YUY2/UYVY/RGB24/RGB32
• Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
• Up to 2-channel IEC60958 audio streams

Included Software

• USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

• The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
• Windows DirectShow/Wave API/DirectSound/WASAPI
• Linux V4L2/ALSA
• macOS AVCaptureSession/AudioUnit

Output Interface

• USB 3.0
• compatible with USB 2.0
• compatible with USB 3.1 Gen 1

Compatible Software

• Zoom Rooms
• Microsoft Teams
• Skype for Business
• Google Hangouts
• GoToMeeting
• Gstreamer
• VLC
• OBS Studio
• XSplit
• QuickTime Player
• Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

• Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
• Linux x86, x64 & ARM architecture, with 2.6.35 and above
• Mac OS X 10.9/macOS 10.12 and above
• Chrome OS

LED Indicator

• Status LEDs indicate the working state of each channel:
• Pulsing slowly: input signal unlocked
• On: input signal locked
• Double blinks: memory failed or FPGA configuration failed
• Off: firmware or power supply abnormal

Form Factor

• 92.2mm (L) x 40.2mm (W) x 12.3mm (H)

Accessories

• 1 × USB 3.0 cable (63cm)

Power Consumption

• 5V max current: ~0.5 A
• Max power consumption: ~2.5 W

Working Environment

• Operating temperature: 0 to 50 deg C
• Storage temperature: -20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
