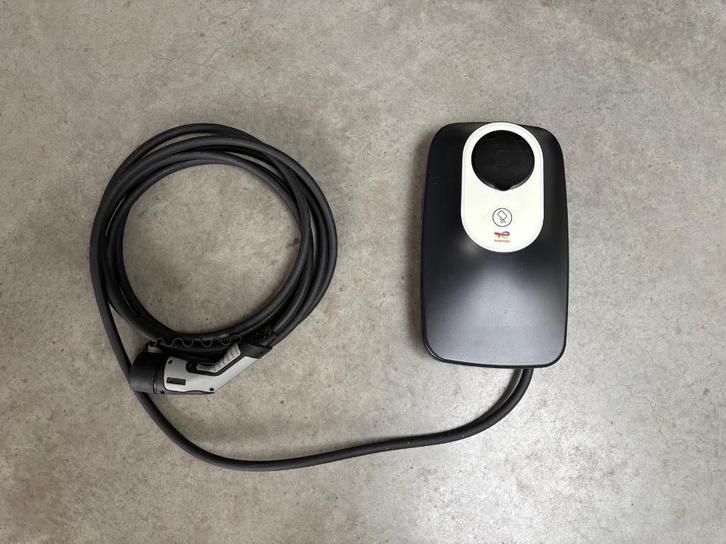

100% werkende laadpaal. Amper gebruikt. Gaat weg wegens dubbel gebruik (nieuwe werkgever). Kan ondersteuning aanbieden bij installatie. NIEUWPRIJS: € 1200

Technical Specifications

Charging Mode

• Mode 3 (IEC 61851-1 ed. 3)
• ISO 15118 (1)

Charge Control

• RFID (IEC 14443 A/B, ISO 15693)
• Plug & Charge (ISO-15118-2) (1)

Connectivity

• Bluetooth
• Wi-Fi (AP & Client)
• Ethernet (WAN + LAN, router)
• Cellular (2G / 4G / LTE)

Multi-charge (Parking Lot)

• Master / Slave configuration

Backend Protocol

• OCPP 1.6J
• OCPP 2.0 (2)

Metering & Hardware

• Metering: MID Meter
• Load Balancing: Supported via optional hardware
• HMI: LED-based Human Machine Interface

Safety & Advanced Options

• Broken PEN Detection (3)
• Bi-Directional Charging (V2G - Vehicle-to-Grid)
• HEMS Integration (EEBus) (3)

Electrical Properties

Voltage Rating

• Single-phase: 1 x 230V (50/60 Hz)
• Three-phase: 3 x 400V + Neutral (50/60 Hz)

Current & Power Rating

• Current Rating: Adjustable from 16A to 32A.
• Note: 16A is the recommended setting by Synergrid (grid operators) to optimize local network stability.

Maximum Charging Power:

• 7.4 kW (Single-phase)
• 22 kW (Three-phase)

Physical Connections & Wiring

• Charging Interface: AC Type 2 socket.
• Cable Options: Standard cable plug or a 7m cable with AC Type 2 plug.
• Installation Wiring: Compatible with wire cross-sections from 0.75 mm² up to 10 mm².

Safety & Leakage Protection

• Earth Leakage Detection: Integrated DC 6mA (Differential Type A protection).

Compliance & Standards

• Core Standard: IEC 61851-1 ed3.
• Safety Labels: CE marked and EMC Class B compliant.
• Manufacturer Readiness: EV/ZE Ready (Predisposed for compatibility with Renault and Nissan electric vehicle standards).

Physical Properties

Dimensions & Weight

• Size (W x H x D): 248 x 426 x 120 mm
• Weight: 5.0 kg

Enclosure & Durability

• Impact Protection: IK10 (Highest standard; withstands up to 20 joules of impact, equivalent to a 5kg mass dropped from 40cm).
• Ingress Protection: IP54 (Protected against dust ingress and water splashes from any direction).

Environmental Operating Limits

• Temperature Range: -30 °C to +50 °C
• Humidity: Maximum 95% (non-condensing)
• Mounting & Support
• Mounting Options: Includes a wall mount as standard; a pedestal is available as an optional accessory for floor-standing installations.
• Warranty: 2 years factory warranty included.

Product Highlights

• Intelligent & Future-Proof: A charging solution designed for longevity, featuring an attractive, compact design that fits any location.
• Versatile Design: Matches all architectural styles and is suitable for both indoor and outdoor installation.
• Rugged Durability: Engineered with weather-proof materials to ensure years of uninterrupted use in domestic settings, even with multiple users and vehicles.

Unique Features & Smart Engineering
Innovative Collaboration: TotalEnergies and eNovates have reinvented the charger concept for a "hassle-free" installation and configuration experience.

All-Inclusive Hardware:

• High-Capacity: 3-phase charge point as standard.
• Extended Reach: Equipped with a fixed 7m charging cable to accommodate even the largest vehicles.
• Optimized Performance: Standardized at 16A configuration, aligned with European grid operator recommendations.

Seamless Connectivity:

• Local Support: Bluetooth for easy maintenance, direct control, and user configuration.
• Network Options: Integrated Ethernet, Wi-Fi, and Mobile Data connections.

Smart Energy Management:

• Dynamic Load Balancing: Standardized feature for peak shaving and smart charging.
• Future-Ready Protocols: Fully supports ISO-15118, OCPP 2.0, and Bi-directional charging (V2G).
• Billing Compliance: Includes an on-board MID-certified metering circuit.
• Interoperability: Compatible with various Home Energy Management Systems via EEBus interface protocols.

Flexible Installation & Safety

• Mounting Versatility: Can be fitted in any location via wall mounting or as a standalone unit using a dedicated pedestal.
• Cost-Effective Safety: Built-in leak detection allows for the use of a more economical Type A differential.
• Universal Compliance: Meets all local regulatory and installation requirements, including AREI/RGIE standards.
