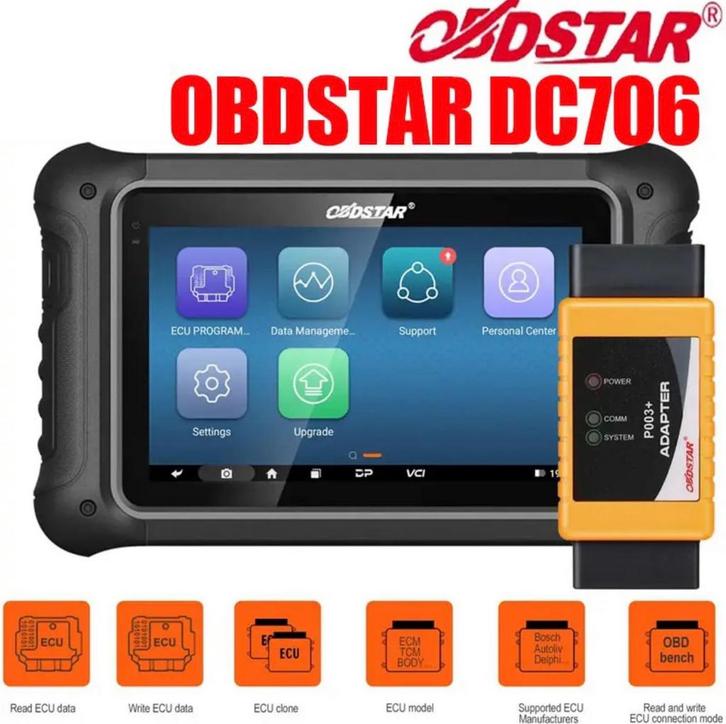

OBDSTAR DC706 ECU Tool Volledige versie en P004-adapter

OBDSTAR DC706 ECU Tool Volledige versie en P004-adapter



OBDSTAR DC706 ECU Tool Beschrijving:
Nieuwe OBDSTAR DC706 ECU Tool Volledige versie voor auto en motorfiets
Diagnostische hulpmiddelen van OBDSTAR met

Specificaties van het OBDSTAR DC706 ECU-gereedschap:
Fabrikant: OBDSTARStaat: Nieuw
OBDSTAR DC706 ECU-tool is ontworpen voor voertuig-ECM, TCM en carrosserie/ander systeem voor ECU-programmering. Het kan ECU-info, R/W Eeprom/Dflash/Pflash/MAP lezen, ECU (Virgin) resetten, kilometerstand kalibreren, IMMO-pincode lezen, ECU-herstel enzovoort. Het werkt allemaal via de OBD- of BENCH-modus en maakt het klonen van de ECU eenvoudig.
OBDSTAR DC706 ECU-gereedschapsdekkingslijst

OBDSTAR DC706 ECU-toolfuncties
ECU-kloon/alles via OBD of BenchECM-kloon voor auto's (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...) ECM-kloon voor motorfietsen (Bosch, Delphi, EFI...) TCM-kloon (Ac Delco, Bosch , Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)Body/Andere kloon (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
OBDSTAR DC706 ECU-tool ondersteunde ECU-fabrikanten
ALPSAutolivBoschContinentalDelphiDensoJohnson ControlsLearMagneti MarelliSiemensTemicValeo
OBDSTAR DC706 ECU Tool Ondersteunde merken

————English———

OBDSTAR DC706 ECU Tool Full Version and P004 Adapter



OBDSTAR DC706 ECU Tool Description:
New OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle
Diagnostic Tools From OBDSTAR with

OBDSTAR DC706 ECU Tool Specs:
Manufacturer: OBDSTAR
Condition: New

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy.

OBDSTAR DC706 ECU Tool Coverage List

OBDSTAR DC706 ECU Tool Functions

ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)


OBDSTAR DC706 ECU Tool Supported ECU Manufacturers

ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo

OBDSTAR DC706 ECU Tool Supported Brands

Car:

ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA


Motorcycle:

APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA

OBDSTAR DC706 ECU Tool Advanced Functions

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter.)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode

More functions in developing...

OBDSTAR DC706 ECU Tool Different Configurations
Configuration Software
DC706_ EN A ECM
DC706_ EN_ B TCM
DC706_ EN_ C BODY
DC706_ EN D ECM+TCM
DC706_ EN E ECM+B0DY
DC706_ EN F TCM+B0DY
DC706_ EN_ FULL ECM+TCM+BODY

OBDSTAR DC706 ECU Tool Package Includes:

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger

Optional:

OBDSTAR P003 Adapter Feature:
For BOSCH ECU data reading, CS, Pincode reading etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...
OBDSTAR P003 Adapter Functions
For BOSCH ECU data reading, CS, Pincode reading etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...
OBDSTAR P003 Adapter Supported ECU list:
BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.
OBDSTAR P003 Adapter Compatible OBDSTAR tablets:
Used with OBDSTAR IMMO series tablets.
• OBDSTAR X300 DP Plus C Pacakge Only

OBDSTAR P003 Adapter Supported ECU list:
1. Continental PCR2.1(TC1796) [SIMOS PCR 2.1 IMMO Data Reading Guide]
• 2010-2014 Audi A1 (8X) 1.6L Diesel
• 2009-2012 Audi A3 (8P) 1.6L Diesel
• 2009-2013 Seat Altea 1.6L Diesel
• 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
• 2010-2012 Seat Leon II 1.6L Diesel
• 2014 Seat Toledo (KG) 1.6L Diesel
• 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
• 2010-2013 Skoda Fabia II (5J) 1.6L Diesel
• 2010-2011 Skoda Roomster (5J) 1.6L Diesel
• 2013-2014 Skoda Rapid (NH) 1.6L Diesel
• 2011-2013 Skoda Superb (3T) 1.6L Diesel
• 2012/2015 Skoda Yeti (5L) 1.6L Diesel
• 2010-2015 VW Caddy (2K) 1.6L Diesel
• 2009-2013 VW Golf VI 1.6L Diesel
• 2010-2013 VW Golf Plus 1.6L Diesel
• 2011-2014 VW New Beetle (9C) 1.6L Diesel
• 2011 VW Passat (B7) 1.6L Diesel
• 2009-2014 VW Polo V 1.6L Diesel
• 2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)
• Citroen C3 Mk2
• Citroen C4 Gran Picasso
• Citroen C4 MK2
• Citroen C5 (RD/TD)
• Citroen C6
• DS DS3
• DS DS5
• DS DS6
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 3008 (T84)
• Peugeot 308 (T9)
• Peugeot 4008
• Peugeot 408
• Peugeot 508

3. Bosch EDC17C60(TC1793)
• Citroen Berlingo
• Citroen C-Elysee
• Citroen C3 Aircross
• Citroen C3 MK2
• Citroen C3 Picasso
• Citroen C4 Cactus
• Citroen C4 MK2
• Citroen C4 Picasso
• Citroen Jumpy
• Citroen Spacetourer
• DS DS3
• DS DS4
• DS DS5
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 308 (T9)
• Peugeot 5008 (T87-P87)
• Peugeot 508
• Peugeot Expert
• Peugeot Ranch/Partner
• Peugeot Traveller
• Opel/Saturn/Vauxhall Combo E
• Opel/Saturn/Vauxhall Crossland X
• Opel/Saturn/Vauxhall Grandland X
• Toyota Proace

4. Bosch MD1CS018
• Mahindra BS-6

5. Bosch MED17XX/EDC17XX
• EDC17U01(TC1766)
• EDC17C46(TC1767)
• EDC17C54(TC1797)
• EDC17C64(TC1797)
• EDC17CP44(TC1797)
• EDC17CP44 MS(TC1797)
• MED17.5(TC1766)
• MED17.5.1(TC1766)
• MED17.5.20(TC1766)
• MED17.5.5(TC1766)
• MED17.5.5 HW2(TC1766)
• MED17.5.2(TC1767)
• MED17.5.5(TC1767)
• MED17.5.5 HW2(TC1767)
• MED17.5.21(TC1782)
• MED17.5.25(TC1782)
• MED17.1.1(TC1797)
• MED17.1.1 MS(TC1797)
• MED17.1.6(TC1797)
• VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX
• ME17.5.6(TC1767)
• ME17.5.20(TC1767)
• ME17.1.1(TC1797)
• ME17.1.6(TC1797)
• VW/Skoda/Seat, Bentley

OBDSTAR P003 Adapter Advantages
1. Portable Design
2. Easy Operation
3. High Performance

OBDSTAR P003 Adapter Instructions
Used with OBDSTAR IMMO series tablets.

OBDSTAR P003 Adapter Specifications:



OBDSTAR P003 Adapter Accessories:
1. P003 adapter
2. ECU BENCH cables

OBDSTAR P003 Harness Connection Diagram
