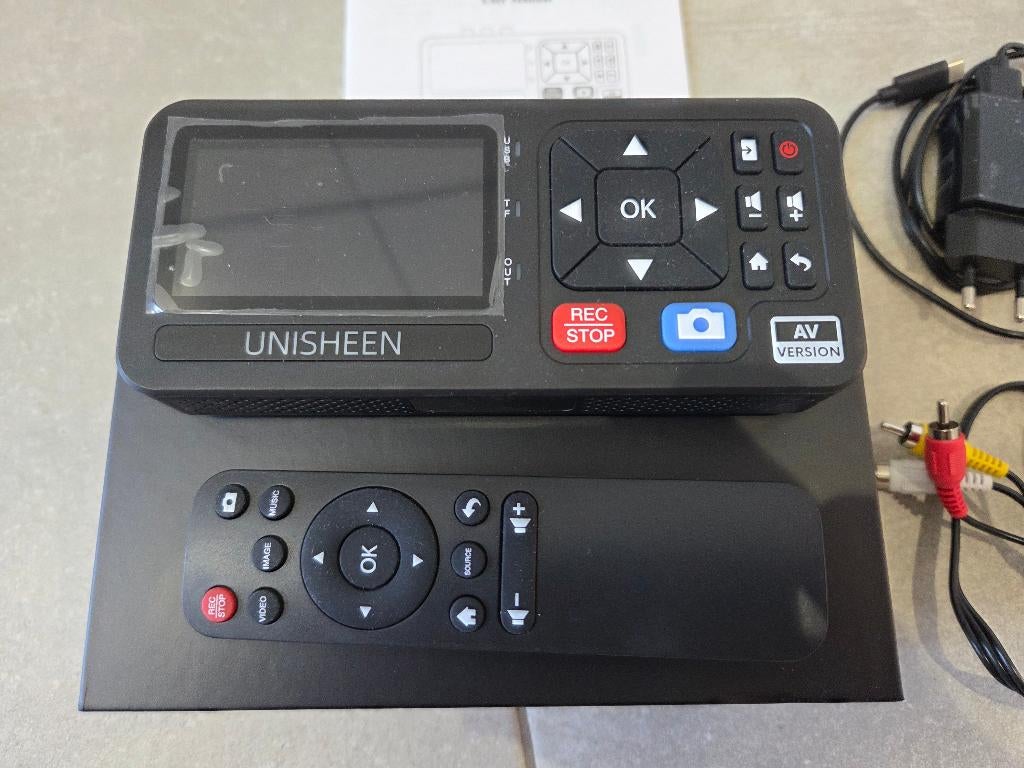

UR230A Video Recorder RCA S-video met scherm
Ideaal voor de digitalisatie van uw VHS/VHS-C/Hi8 cassettes enz.



Input Resolutions up to 720x576

Record Resolution:1080p/720/576p

CVBS/Svideo Input

Recrod format: MP4(H.264)

3 Inch Monitor

Support Video Recording with USB Flash Disk/TF Card

Support Remote Control


Features



CVBS/Svideo Input

HDMI 1080p Loopout

Recording in 480p/576/1080p

Support only Audio Recording

Support Snapshot in Recording

Schedule Recording

Flash USB Drive or TF Storage

Support Play Back

RemoteControl


Specifications



Video Input(Switchable): 1x CVBS/Svideo

Video Resolution: 720x576/720x480 NTSC/PAL

Loop Out: 1xHDMI(1080p)

Audio: RCA Audio/External Line In

Display Screen: 3 Inch

Remote Control: Yes

Screeshot in Recording: Yes

Only Audio Recording: Yes

Playback: Yes

Record Resolution: 1080p/576p/480p

Storage Device: Flash USB Drive(up to 512G),TF(up to 512G)

Storage File System: FAT32/exFAT/NTFS

Record Format: MP4(H.264 Codec)

Video Bitrate : 4/6/8 Mbit/s

Audio Bitrate: 128/196/320 Kbit/s

Size of Each File: 4G(FAT32) or 16G(NTFS/exFAT)

Schedule Recording: Support Computer Mode

Record Resolution: 1080p/576p/480p

Compatible UVC/UAC: Yes

Comatible System: Win10/11, Mac OS, Linux

Compatibility with 3rd application software: OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype

Attached Software: UXplayer


General



Language: English/Japanese/Italian

Dimension (W×L×H): 158x70x25mm

Package(W×L×H): 186x145x78mm

Net/Gross Weight: 0.18kg/0.6kg

Temperature: 0-55(Work),-20-80(Storage)

Power/Consumption: 5V DC 1.0A/3W


Included in Package



UR230A

RCA Cable 1.2M

3.5mm Audio Cable 1.2M

USB Cable 0.8M

USB Power Adapter 5V1A

Remote Control

Manual


+ SCART to RCA adapter
