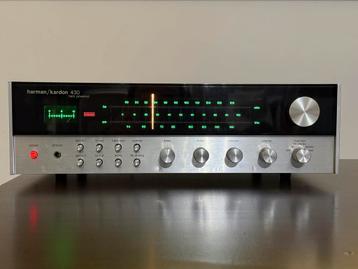

Harman Kardon 430 Twin Powered Stereo Receiver (1976)€ 299,00

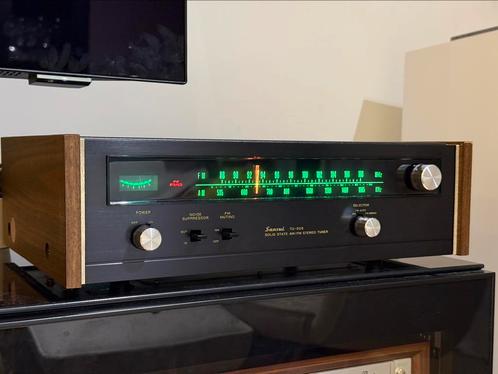

SANSUI TU-505 Solid State Stereo Tuner
€ 190,00
Ophalen
371sinds 5 mei. '25, 20:06
Kenmerken
ConditieGebruikt
Beschrijving
Cleaned and checked, works without any problems, just to use it.
From internet:
Description
As the world's foremost audio-only specialist, Sansui has spared no effort in making the TU-505 one of the most sensitive, most versatile tuners ever marketed.
It is packed with state-of-the-art circuitry and a multitude of sophisticated features.
The easy-to-tune wide dial with linear FM scale, noise-free FM tuning, FM antenna switch that attenuates exceedingly strong stations, and convenient tape recording outputs are just a few examples. It is distinctively styled with a refined satin-black front panel, walnut side panels and a highly rational layout of controls and switches.
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 535 to 1605 kHz
Sensitivity: 2.5uV (FM)
Signal to Noise Ratio: 65dB (FM)
Distortion: 0.8% (FM)
Selectivity: 50dB (FM)
Frequency response: 30Hz to 15kHz (FM)
Output: 1000mV
Semiconductors: 27 x transistors, 1 x FET, 19 x diodes, 1 x IC
Dimensions: 115 x 407 x 278mm
Weight: 5.5kg
From internet:
Description
As the world's foremost audio-only specialist, Sansui has spared no effort in making the TU-505 one of the most sensitive, most versatile tuners ever marketed.
It is packed with state-of-the-art circuitry and a multitude of sophisticated features.
The easy-to-tune wide dial with linear FM scale, noise-free FM tuning, FM antenna switch that attenuates exceedingly strong stations, and convenient tape recording outputs are just a few examples. It is distinctively styled with a refined satin-black front panel, walnut side panels and a highly rational layout of controls and switches.
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 535 to 1605 kHz
Sensitivity: 2.5uV (FM)
Signal to Noise Ratio: 65dB (FM)
Distortion: 0.8% (FM)
Selectivity: 50dB (FM)
Frequency response: 30Hz to 15kHz (FM)
Output: 1000mV
Semiconductors: 27 x transistors, 1 x FET, 19 x diodes, 1 x IC
Dimensions: 115 x 407 x 278mm
Weight: 5.5kg
