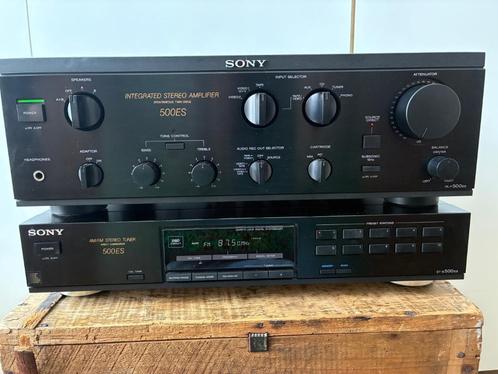

Sony TA F500 ES + ST 500 ES - Top segment van Sony

Mooie en perfect werkende Sony ES series versterker en tuner.

ES staat voor Elevated Standard, het top segment van Sony

De toestelen zijn in een uitstekende staat en kunnen getest worden bij ophalen.

Verzenden kan eventueel ook met Bpost track & trace, ze worden dan proffesioneel en schokvrij ingepakt.

Specificaties van de versterker:

• Manufacturer: Sony
• Model: TA-F 500 ES
• Type: Integrated amplifier
• Years of manufacture: 1987 - 1989
• Made in: Japan
• Color: Black
• Power consumption:
• Dimensions: 430 x 150 x 370 (WxHxD).
• Weight: 13.5 kg
• Original price approx.: 899 DM

Connections

Specifications

• DIN sine output power:
• 90 + 90 W into 8 ohms (degree of distortion: 0.004 %).

120 + 120 W into 4 ohms (distortion: 0.006 %)

Special Features

• Robust chassis (special chassis "Gibraltar") reduces distortion normally caused by vibrations.

• Largely dimensioned power supply always holds sufficient power ready even for the highest dynamic peaks.

• Tone control section with exclusively passive components to avoid distortion.

• Direct switch for original playback of the sound source.

• Power amplifier in "Super Legato Linear" system ensures high output power.

• Connection possibility for 4 speakers, suitable for large dimension LS connection cables.

• Inputs: Phono, CD, Tape1, Tape2, Adaptor, Direct Input, Tuner

outputs: Tape1, Tape2, Adaptor

• Input- / Rec- Selector

Cartridge Phono (MC/MM)
Source-Direct circuit

• Subsonic Filter

Muting button (-20dB)

• gold-plated headphone jack

Tuner:

Type: Mono/Stereo Tuner
Tuning Bands: FM, MW, LW
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 522 to 1611 kHz
LW Tuning Range: 153 to 279 kHz
Sensitivity: 1.8uV (FM), 250uV (MW), 700uV (LW)
Signal to Noise Ratio: 82dB (FM), 50dB (MW), 50dB (LW)
Distortion: 0.45% (FM), 0.3% (MW), 0.3% (LW)
Selectivity: 80dB (FM), 50dB (MW), 50dB (LW)
Output: 400mV (FM)
Dimensions: 430 x 85 x 365mm
Weight: 3.9kg
Year: 1989
