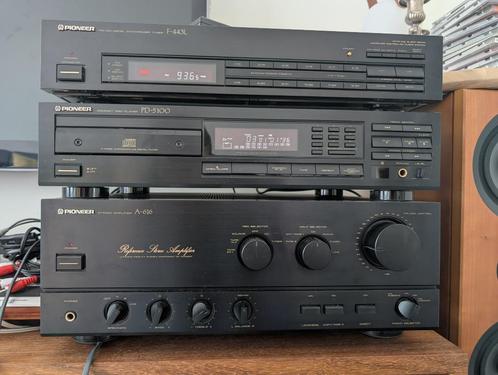

Pioneer A-616 versterker / DP-5100 CD-Speler/ F-443L tuner

Te koop in zeer goede originele staat.
Pioneer A-616 / DP-5100 CD-Speler met afstandsbediending / F-443L tuner

• Model: A-616
• Year built: 1987-88
• Made in: Japan
• Color: black
• Type: Analog
• Remote control: no
• Power consumption: 650 W
• Dimensions: 420 x 162 x 435 mm (WxHxD)
• Weight: 14 kg

Connections

• Number of inputs:
• Phono (MM/MC selectable): 2.5 mV / 50 kOhm (MM), 0.2 mV / 100 kOhm (MC).
• CD, Tuner, Line, 3x Tape In: 150 mV / 50 kOhm.

• Number of outputs:
• 3x Tape Out: 150 mV / 2.2 kOhm.
• Headphones (6.3 mm jack, front)
• 2 pairs of loudspeakers

Technical Data

• Continuous power
• 8 Ohm: 70 W (0.005%)

4 Ohm: 95 W (0.008%)

• Dynamic power
• 8 Ohm: 2x 85 W
• 4 Ohm: 2x 130 W

• Total harmonic distortion: 0.005% (20-20,000 Hz, 70 W, 8 Ohm)
• Attenuation factor: 200 / 70 (8 Ohm, 1 kHz / 20-20,000 Hz)
• Frequency response:
• Phono MM: 20 - 20,000 Hz (±0.2 dB).

Phono MC: 20 - 20,000 Hz (±0.3 dB)

• High level: 1 - 150,000 Hz (+0/-3 dB)

• Signal-to-noise ratio:
• IHF (short-circuited, A-weighted).
• Phono MM/MC: 95 dB / 77 dB
• High level: 108 dB

• DIN (continuous power/50 mW)
• Phono MM: 74 dB / 65 dB
• High level: 92 dB / 66 dB

• Stereo channel separation:
• Tone control:
• Bass: yes, ±8 dB (100 Hz)

Treble: yes, ±8 dB (10 kHz)

• Loudness: yes, +5 dB (100 Hz), +3 dB (10 kHz) (at -40 dB volume)
• High Filter: no
• Low Filter (Subsonic): yes, 7 Hz (-12 dB/oct)
• Mute: no
• Direct/Line-Straight: yes
