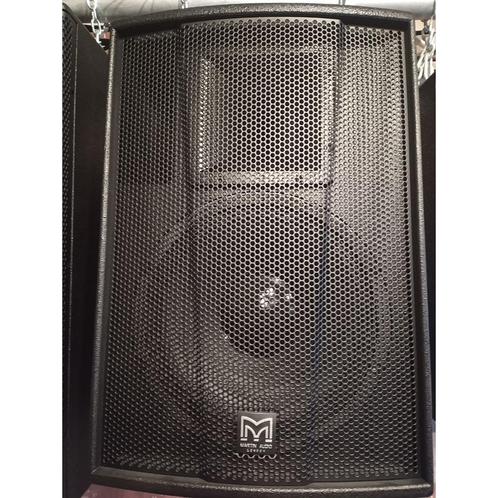

LUIDSPREKERS MARTIN AUDIO F12+(2st)

LUIDSPREKERS MARTIN AUDIO BLACKLINE F12+ (2st)

features
◗ Compact two-way passive system
◗ User rotatable 80˚ x 50˚ horn
◗ Top hat fitting for speaker stand mounting
◗ Five year limited warranty
applications
◗ Live club performance
◗ Floor monitor
◗ Club installs
◗ AV presentations

technical specifications
TYPE Compact, two-way passive
FREQUENCY RESPONSE (5) 65Hz-18kHz ± 3dB
-10dB @ 55Hz
DRIVERS 12” (300mm)/2.5” (63.5mm) voice coil LF driver
1” (25mm) exit HF compression driver
RATED POWER (2) 300W AES, 1200W peak
RECOMMENDED AMPLIFIER MA2.0
SENSITIVITY (6) 97dB
MAXIMUM SPL (9) 122dB continuous, 128dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 80˚ horizontal, 50˚ vertical
CROSSOVER 2.2 kHz passive
ENCLOSURE 38 litre, multi-laminate birch ply
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
PIN CONNECTIONS FR+,- : 1+,1- , Link thro’: 2+,2-
FITTINGS 10 x M8, 4 x M8 threaded inserts
1 x mounting pole socket
1 x pocket handle
DIMENSIONS (W) 398mm x (H) 571mm x (D) 365mm
(W) 15.6ins x (H) 22.5ins x (D) 14.3ins
WEIGHT 21kg (46lbs)

The Blackline F12+ is a high power, compact two-way system with a new, vented-chassis, 12” (300mm) LF driver
and a new 1” (25mm) exit compression driver mounted on a rotatable 80˚ x 50˚ constant directivity HF horn. The
LF driver has a tough, water resistant cone and features a high BL motor with a flat-wire copper coil and an
aluminium demodulating ring. This reduces intermodulation distortion and improves midrange performance when
driven hard. Increased excursion is available by virtue of a triple roll surround and deep motor structure. The
directivity of the LF driver has been matched to the HF horn in the crossover region by improved crossover design
and cone profile optimisation, also the new HF compression driver utilises an ultra-lightweight Kapton diaphragm for
extended high frequency response.
The F12+ is the ideal choice for fullrange applications calling for an efficient, reliable workhorse that is equally
suitable for fixed installations or quick deployment mobile operations. Its ergonomic design and rotatable HF horn
makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet
also allows it to be used as a highly intelligible floor monitor. Ten M8 inserts and four M8 bracket inserts make a
variety of mounting methods possible including horizontal or vertical mounting.
The F12+ comes with a top hat fitting for speaker stand mounting.
