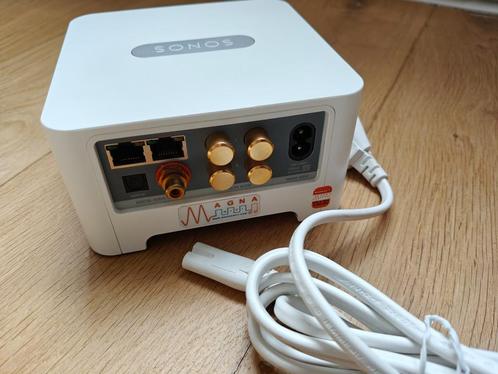

Sonos Connect S2 Ultimo Magna Hifi streamer

Sonos Connect S2 Ultimo

Sonos Connect (S2) met audiofiele upgrade tot Ultimo editie door Magna Hifi. Werkt met de Sonos S2 app.

In perfecte staat. Weg wegens downgrade.

Ophalen in Brussel, of verzending op kosten/risico van koper.

Stream your Sonos music high end! The characteristic “ragged” (digital) noise, which is caused by jitter, is history after upgrading. The sound is smooth and relaxed, one would completely forget that this is a digital source!

Modification is executed on Coax SPDIF output, the optical output (TOS Link) is being ‘disabled’ (can be re-enabled as an option, see options)

Original digital SPDIF signal is internally “re-clocked” and buffered to eliminate any remaining jitter.

Standard (poor) SPDIF RCA chassis part is replaced with new gold plated connector.

The Oscillator module is powered by separate power branch including special (ultra wide band) power regulator for optimized operation and precision of the Tentlabs oscillator

New extreme accurate Ultra Low Jitter Tentlabs Clock module replaces standard Sonos Oscillator.

Modification is available for your Sonos Connect of Sonos ZP90

Improving the integrated 12V en 3,3V power rails for maximum performance. Using high grade Panasonic FC en Wima MKT capacitors result in low voltage rinkle for improved derived power branches.

The Ultimo is equipped with special “audio-grade” power caps for both 12V and 3,3V power rail.


Best “Audio-grade” capacitors available in your Sonos Connect

Electromagnetic shielding from the transformer and coil of the switching power supply to preventinterferences in thedigital audio-signal.

Tentlabs clock output level correction to match clock input of theCirrus DAC chip.

White LED is replaced by a blue, to identify it as ‘Ultimo’.
