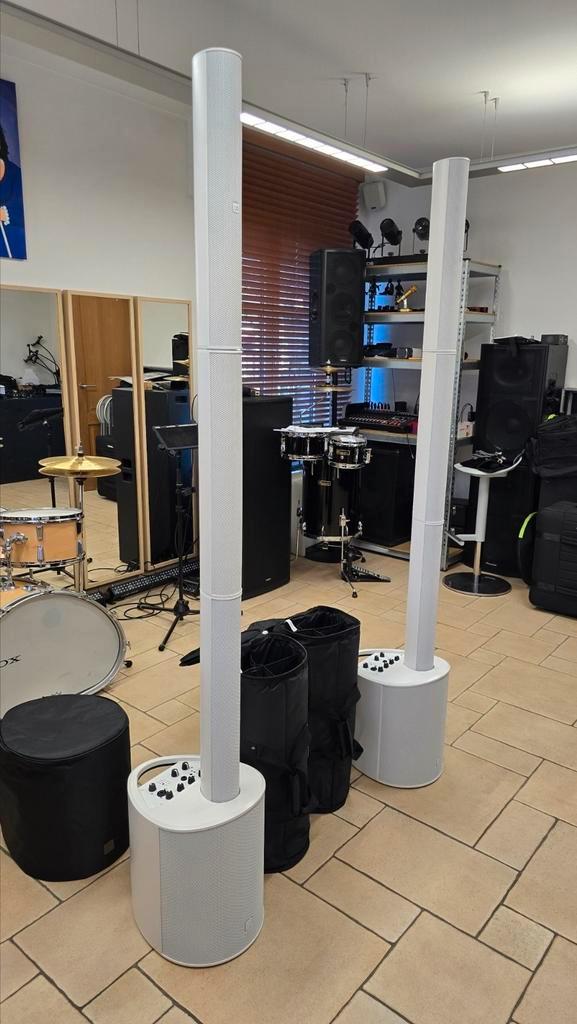

MAUI 5 GO!!! Ultra-portable battery-powered column PA system - 5200 mAh



White White, Battery-powered, 5200 mAh White, Battery-powered, 5200 mAh Black

Plug-and-play lithium ion battery for up to 20 hours continuous operation

Practically unlimited power supply thanks to Quick-Swap Technology®

Provides sound to over 100 people

Ultra-light, portable 4-piece design that weighs only 13 kg

Integrated 4-channel mixer

Bluetooth® stereo audio streaming

All-in-one column speaker


MAUZI 5 GO!!! Ultra-portable battery-powered column PA system - 5200 mAh




White White, Battery-powered, 5200 mAh White,
Battery-powered, 5200 mAh Black

Plug-and-play lithium ion battery for up to 20 hours continuous operation

Practically unlimited power supply thanks to Quick-Swap Technology®

Provides sound to over 100 people

Ultra-light, portable 4-piece design that weighs only 13 kg

Integrated 4-channel mixer

Bluetooth® stereo audio streaming

All-in-one column speaker for PA and monitor applications

Increased range and broader coverage thanks to line-array design



GO LOUD AND CLEAR

With 800 watts of class D peak power, the MAUI® 5 GO covers audiences of a 100 and more hands down.We’ve added our proprietary LECC® DSP which performs limiter, equalizer, compressor and crossover duties to ensure immaculate audio quality and speech intelligibility even at maximum levels.

GO FOR HOURS

The high-capacity LG Chem lithium-ion battery element provides up to 20 hours of uninterrupted operation – it all depends on how much you turn up the MAUI® 5 GO. And it takes only 3 hours to fully recharge the battery!




Perfectly equipped throughout, the MAUI® 5 GO is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power for up to 20 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO the ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

Its superlight weight of just 13 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. In addition, LD Systems' Quick-Swap-Technology® enables the immediate, problem-free replacement of the battery element and thus offers the possibility of extending the operating time of the MAUI® 5 GO as desired




General

Product type

PA Complete Systems

Type

active

Number of subwoofers

1

Color

Black

Max. SPL (Peak)

120 dB

Frequency response

50 - 20,000

Dispersion (H x V)

120° x 20 °

Overall height

1985 mm

Weight

12,9 kg

Battery

Rechargeable batteries

28.8 V / 5200 mAh

Battery manufacturer

LG Chem

Battery technology

Lithium-ion

Battery operation time at maximum load

20 hours @ 98 dB (Lounge), 10 h @ 104 dB (Live music), 6 hours at 120 dB (DJ mode)

Charging time

2 hours up to 80%, 3 hours up to 100%

Woofer characteristics

Low/mid Woofer dimensions

8 "

Woofer dimensions (mm)

203.2 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil (inch)

2 "

Woofer voice coil (mm)

50.8 mm

Cabinet construction

Bass Reflex

Cabinet material

ABS plastic

Subwoofer width

305 mm

Subwoofer height

405 mm

Subwoofer depth

395 mm

Subwoofer weight

8.9 kg

Mid/Hi System

Midrange dimensions

4 x 3 "

Midrange dimensions (mm)

4 x 76.2 mm

Midrange magnet

Neodymium

Midrange brand

Custom-made

Midrange voice coil

1 "

Midrange voice coil

25.4 mm

Mid/Hi system impedance

4 Ohm(s)

Loudspeaker inputs

1

Speaker input connections

Custom-made multipin

Cabinet construction mid/high

Closed

Mid/Hi system cabinet material

ABS plastic

Mid/Hi system width

82 mm

Mid/Hi system height

535 mm

Mid/Hi system depth

105 mm

Mid/Hi system weight

3.5 (3ps) kg

Amplifier module (integrated in subwoofer)

Amplifier

Class D

Amplifier output system (RMS)

200 W

Amplifier output system (peak)

800 W

Protection circuits

over-current, Short circuit, thermal overload, DSP-based multiband limiter

Cooling

Convection

Ambient temperature (operating)

0 - 40 °C

Controls

BT level, On / Off, Mic level, Sub level, BT pairing, Line level, Main level, MP3 / Hi-Z level, Mono/stereo mode

Indicators

On, Limit, Signal, Protect (protection circuit engaged)

Power supply

Switching power supply

Operating voltage

100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)

Power consumption

300 W

Line inputs

2 x stereo

Line input connectors

XLR, 6.3 mm jack

Mic inputs

1

Mic inputs

XLR, 6.3 mm jack

MP3 inputs

1

MP3 input connectors

3.5 mm jack

Hi-Z inputs

1

Hi-Z input connectors

6.3 mm jack

Loudspeaker outputs

1

Speaker output connections

Custom-made multipin

DSP characteristics

Bit depth AD/DA converter

24 / 24 bit

Internal sampling frequency

48 kHz
