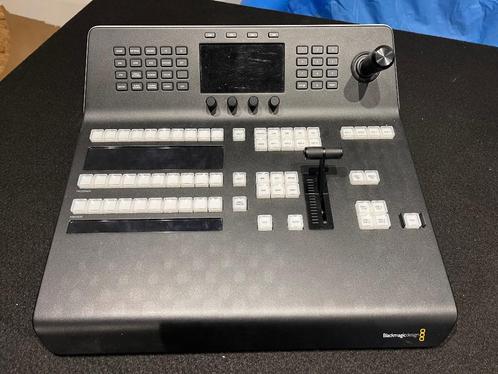

Blackmagic Design ATEM 1 M/E Advanced Panel 10

Te koop en in zeer goede staat: Blackmagic Design ATEM 1 M/E Advanced Panel 10

Hardware Control Panel

• For controlling ATEM mixers
• Suitable e.g. for: Blackmagic ATEM Television Studio HD, ATEM Production Studio 4K, ATEM 1M/E Production Studio 4K, ATEM 2 M/E Production Studio 4K, ATEM 4 M/E Production Studio 4K
• 10 Direct cross points
• 20 Shifted cross points
• Tri-Color LED crosspoint buttons
• Crosspoint label: 3-line, 24-character LCD
• Selectors for the next transition: BKG
• Button 1 - Button 4
• Selectors for DSK transitions: Audio, Cut, Tie/Preview
• 4 On-air displays
• 1 Transition preview
• 3 LED menu displays
• Menu control: 20 buttons
• 10 Dedicated macro buttons
• 1 Destination bus
• 1 Source selector
• 1 Fade lever
• 1 3-Axis joystick
• 1 Numerical keypad
• Power supply: AC 110 - 240 V
• Power Consumption: 45 W
• Dimensions (W x H x D): 430 x 162 x 389 mm
• Weight: 5.74 kg
• Suitable case 518060 (not included)

Connections:

• 2 x Ethernet 1000 / 100 / 10 BaseT
• 1 USB-C port for firmware updates
