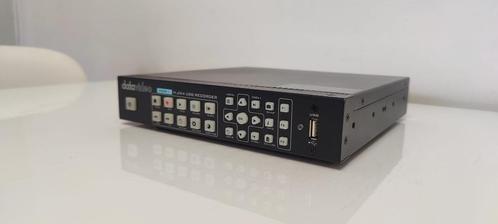

Datavideo HDR-1 Standalone HD HDMI H.264 Recorder and Player

In nette staat.

The unit supports MP4 (H.264+AAC) format video files and uses USB flash drives.

One major advantage of the HDR-1 is the ability to use it independently of a PC. Simply connect the HDR-1 to an HDMI video source to record from a range of devices, including digital camcorders, game consoles, PC games (720p suggested) and more. Make all your favourite footage easier to save and watch.

It records high quality format video files (up to20 Mbps in MP4), which is ideal for capturing and archiving footage from worship seminars, corporate meetings, school announcements, lectures, or live concerts. It can also be used by broadcasters to create a web-optimized proxy recording.

Recorded files can be uploaded to YouTube orany website immediately after an event without needing to transcode, which makes it easy to share your content online. Front panel buttons make it easy to use. The record/pause feature allows users to record an event conveniently as a single file even if there is a break in proceedings.


Video Standard HD & SD

Video Format
1080p 50/60
1080i 50/60
720p 50/60
480i/480p/576i/576p

Supported Video Input
Signal 1x HDMI

Video Output 1x HDMI


Embedded Audio 2ch pcm
Storage Medium USB Flash Drive
Multi-channel Recording 1-CH HD only

Estimated Record Time (min per 10GB)

SD 16GB: 4.2Hr (7.5Mbps)~ 10Hr (3Mbps)

HD 16GB: 1.5Hr (20Mbps)~ 2Hr (15Mbps)

Recording Media USB Flash Drive, SD Card (USB adapter required), HDD/ SSD (via
USB2.0)

Storage File System NTFS

Recorded File Format MP4 (H.264+ AAC)

Video Recording Bit Rate /
Color Sampling YUV 4:2:0 / 12bit
Audio Recording Format AAC 2CH,
16bit 48KHz 128Kbps


External Control RS-232 (Dsub 9pin), GPI (3.5Ø phone jack)

Power Failure Protection Redundant USB power supply (not included)

Chassis 1RU, Half-rack Width
Dimension (LxWxH) 220 x 211 x 42 mm

Weight 1.3 kg

Operating Temp. Range 0~40 °C

Power DC 12V, 0.5A
