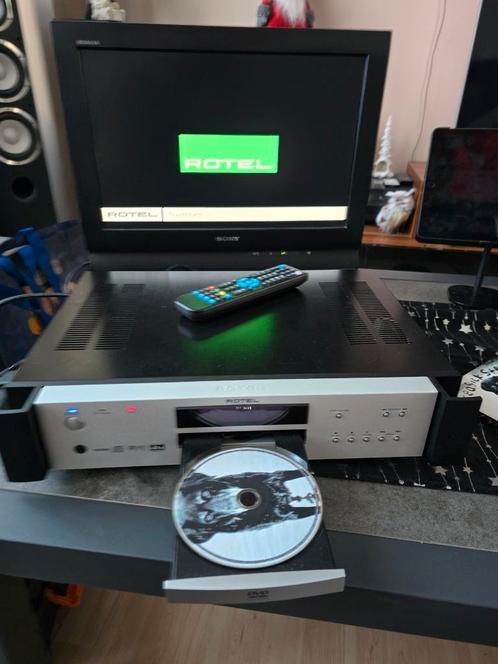

ROTEL RDV 1092 DVD SPELER

De set bevat stroomkabel + afstandsbediening + audiovideokabel HDMI

Readable discs:
DVD-Audio, DVD-Video, Audio CD, MP3 in CD-R/
RW, DVD-/+R
Video format:
PAL or NTSC. 480i/576i, 480p/576p, 720p,
1080i, 1080p.
Other
Power requirements:
AC 110-240 V, 50/60 Hz
Power consumption:
26 W
Weight:
5.1 kg (11.2 lbs)
Dimensions (W x H x D):
432 mm x 92 mm x 336 mm
17.01” x 3.62” x 13.23”
Front Panel Height
(feet removed/for rack mount)
80 mm/3.15”
Video output
COMPONENT (pin jack):
Y Output: 1.0 Vp-p (75 ohm)
PB/PR Output: 0.7 Vp-p (75 ohm)
VIDEO OUT (pin jack):
1.0 Vp-p (75 ohm)
S-VIDEO OUT (S jack):
Y Output: 1.0 Vp-p (75 ohm)
C Output (NTSC): 286 mVp-p (ohm)
C Output (PAL): 300 mVp-p (75 ohm)
HDMI:
Version 1.1
Signal to noise ratio:
65 dB
Audio output
Analog Out (pin jack):
2.0 Vrms (220 ohms)
Digital Out:
Optical: –21dBm to –15dBm (Peak)
Coaxial: 0.5 Vp-p (75 ohm)
Audio characteristics
Frequency response:
CD (at 44.1 kHz): 2 Hz to 20 kHz
DVD (at 48 kHz): 2 Hz to 22 kHz
DVD (at 96/88.2 kHz): 2 Hz to 44 kHz
DVD (at 192/176.4 kHz) : 2 Hz to 88 kHz
Dynamic range:
16 bit: more than 100 dB
20 bit: more than 110 dB
24 bit: more than 110 dB
Wow and flutter:
Unmeasurable (less than ± 0.002%)
Total harmonic distortion:
16 bit: less than 0.0018%
20/24 bit: less than 0.0012%
