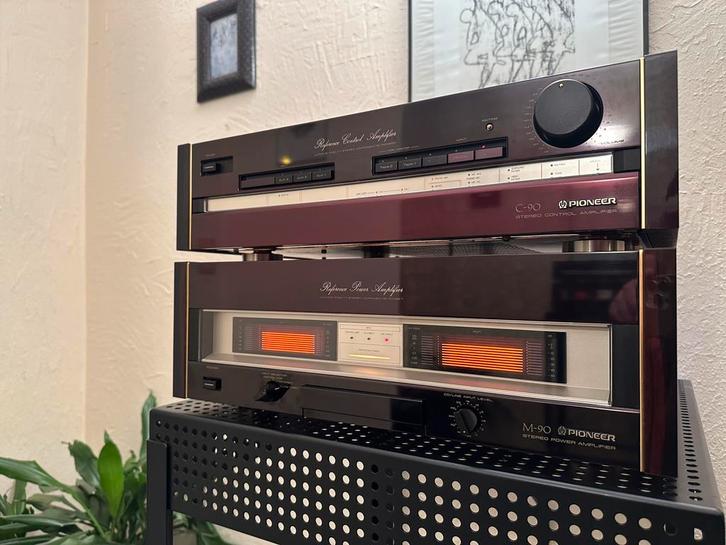

Pioneer C-90+M90 Reference urushi

Zeer goede staat , perfect werkend

Natuurlijk kun je luisteren en testen

Pioneer C-90
Data
General

Manufacturer: Pioneer
Model: C-90
Model range: Urushi series
Type: Preamplifier
Made in: Japan
Color: Black, wooden sides
Remote control:
Power consumption: 26 W
Dimensions: 457 x 133 x 404 mm
Weight: 9 kg
Original price approx.: 1'300 DM

Connections

Number of inputs:
Phono 1 MM: 2.5 mV, 50 kOhm, max. 450 mV
Phono 2 MC: switchable 0.25 mV, 40 kOhm / 0.125 mV, 3 Ohm
CD: 150 mV, 50 kOhm

Tuner: 150 mV, 50 kOhm
Tape Play 1, 2: 150 mV, 50 kOhm
Aux 1, 2, 3: 150 mV, 50 kOhm
Number of outputs:
Tape Rec 1, 2: 150 mV, 1 kOhm
Pre out: 1 V, 600 Ohm

Specifications

Frequency response: 20 Hz - 20 kHz, ± 0.2 dB
Distortion factor: 0.002 %
Signal-to-noise ratio:
Phono MM 1, 2:
Phono MC 3:
High level: > 95 dB
Tape: > 100 dB
Tone control
Bass: 100 Hz, ± 9 dB
Treble: 10 kHz, ± 9 dB
Loudness:
High Filter: - 6 dB / octave at 10 kHz
Low Filter (Subsonic): - 6 dB / octave at 7 Hz
Muting: 0 dB, - 20 dB

Pioneer M-90
NamespacesPageDiscussionPage actionsView sourceHistoryMore
Data
General

Manufacturer: Pioneer
Model: M-90
Model range: Urushi series
Type: Power Amplifier
Years of manufacture: 1986 - 1988
Made in: Japan
Color: Black, wooden sides
Remote control:
Power consumption: 1'300 W max.
Dimensions: 457 x 154 x 430 mm
Weight: 22.6 kg
Original price approx.: 1'700 DM

Connections

Number of inputs:
Line In: 1 V / 50 kOhm, with level control.
Line In Direct: 1 V / 50 kOhm, with level control

Number of outputs:
Headphones: 4 - 16 Ohm
2 speaker pairs

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 200 Watt (20 Hz - 20'000 Hz), 2x 250 W DIN
4 Ohm:
dynamic power
8 Ohm: 2x 300 W
4 Ohm: 2x 550 W
2 Ohm: 2x 800 W
Total harmonic distortion: 0.03 %
Frequency response: 20 - 20'000 Hz, ± 0.1 dB
Signal-to-noise ratio: 125 dB

Special Features

Fluorescent peak indicators with peak hold (can be switched off)
Loudspeaker impedance switch
Infrasonic filter (7 Hz)
Separate power supplies
Urushi series unit
