LUCID  AD9624 & DA9624
24-Bit A/D and D/A Converters
Extraordinary converters for recording, mastering, & post. Big features come in small boxes.
Perfect your audio with the addition of Lucid’s AD9624 and DA9624
to your recording system. Each of these half rack-sized converters
bridges the gap between analog and digital equipment with transpar-
ent audio conversion. True 24-bit resolution assures full dynamic
range in both analog-to-digital and digital-to-analog signal paths.
Both units offer stereo 96 kHz conversion for maximum sampling
bandwidth. The AD9624’s noise shaping options preserve the clarity
of low-level 16-bit material without added distortion.
Multiple connections for flexible operation.
The AD9624 accepts input through XLR connectors, and output of its
digital bit stream can flow simultaneously through AES3, S/PDIF
coaxial and optical connections for recording to two formats. Or you
can simply maintain multiple connections for a flexible setup. The
DA9624 receives input through these same three connector types. It
delivers analog output through XLR and 1/4" connectors for interfacing
with balanced or unbalanced equipment. An additional front panel
headphone output provides a convenient way to monitor audio levels.
Finishing touches make all the difference.
Easy-to-read 20-segment LED ladders on both converters show you
exactly where to set I/O controls for optimal A/D and D/A conversion.

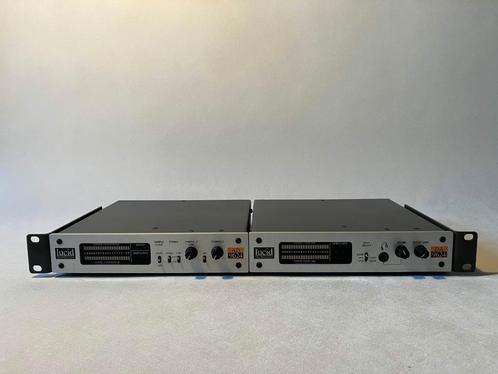

Rack the AD9624 next to the DA9624 using a Lucid RM-4 rackmount
tray or use either unit on its own for your specific interface requirements



AD9624 A/D Converter
Performance
· Frequency response
— For sample rates of 88.2 kHz and 96 kHz:
20 Hz to 40 kHz (+/–1 dB)
— For sample rates of 44.1 kHz and 48 kHz:
20 Hz to 20 kHz (+/–1dB)
— For 32 kHz sample rate: 20 Hz to 15 kHz (+/–1 dB)
· Internally generated sample rates: 32, 44.1, 48, 88.2 and
96 kHz and external sync via word clock
· Dynamic range: >114 dB, A-weighted
· Analog input impedance:
20 kΩ balanced, 10 kΩ unbalanced
· Maximum analog input level at full CCW:
+25 dBu balanced
· Maximum analog input level at full CW:
–5 dBu balanced
Connectors
· Analog inputs:
Balanced XLR
· Digital outputs:
AES3 (XLR), S/PDIF (coaxial), and
TOS-LINK (optical)
· Word Clock input: BNC
· Power supply: External AC (Lucid PS-3 or PS-3E) using
7 pin DIN connector
Physical
· 1/2U Chassis (H x W x D):
1.72 in. x 8.5 in. x 8 in.
4.37 cm x 21.59 cm x 20.32 cm
· Weight: 6.7 lb. (shipping)


DA9624 D/A Converter
Performance
· Frequency response
— For sample rates of 88.2 kHz and 96 kHz:
20 Hz to 40 kHz (+/–1 dB)
— For sample rates of 44.1 kHz and 48 kHz:
20 Hz to 20 kHz (+/–1 dB)
— For 32 kHz sample rate: 20 Hz to 15 kHz (+/–1 dB)
· Dynamic range: >114 dB, A-weighted
· Analog output impedance:
100 Ω balanced, 50 Ω unbalanced
· Maximum analog output level:
+25 dBu balanced @ 0 dBFS
· Maximum headphone output level:
20 V peak to peak into 2000 Ω,
160 Ω output impedance
· Analog output attenuation range:
∞ to 0 dB, +/–2 dB
Connectors
· Digital inputs:
AES3 (XLR), S/PDIF (coaxial), and
TOS-LINK (optical)
· Analog outputs:
Balanced XLR, balanced/unbalanced 1/4" TRS, and
front panel-mounted headphone output: stereo 1/4" TRS
· Power supply: External AC (Lucid PS-3 or PS-3E) using
7 pin DIN connector
Physical
· 1/2 U Chassis (H x W x D):
1.72 in. x 8.5 in. x 8 in.
4.37 cm x 21.59 cm x 20.32 cm
· Weight: 6.7 lb. (shipping)
